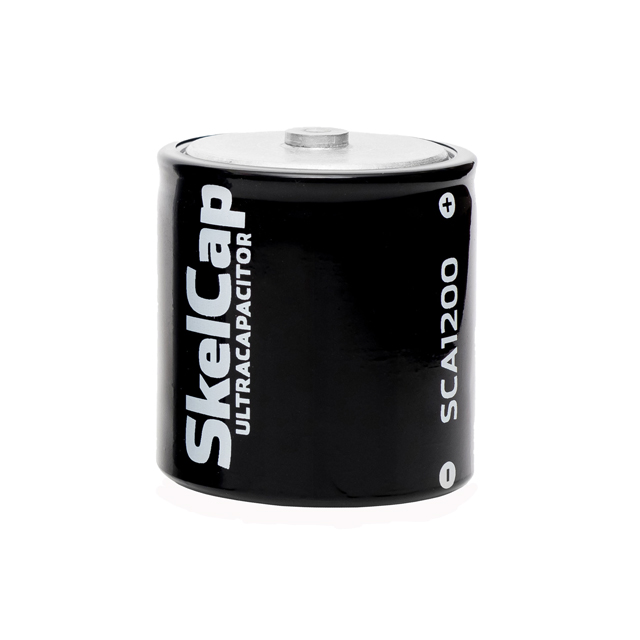

SKELCAP SCA1200
ObsoleteSkeleton Technologies GmbH
CAP 1200F 2.85V CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKELCAP SCA1200
ObsoleteSkeleton Technologies GmbH
CAP 1200F 2.85V CHASSIS MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKELCAP SCA1200 |
|---|---|
| Capacitance | 1200 F |
| ESR (Equivalent Series Resistance) | 0.3 mOhms |
| Height - Seated (Max) [Max] [z] | 2.492 in |
| Height - Seated (Max) [Max] [z] | 63.3 mm |
| Lifetime @ Temp. | 1500 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Can, Axial |
| Size / Dimension [diameter] | 2.37 " |
| Size / Dimension [diameter] | 60.2 mm |
| Termination | Weld Stud |
| Voltage - Rated | 2.85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SKELCAP SCA1200
1200 F (EDLC) Supercapacitor 2.85 V Axial, Can 0.3mOhm 1500 Hrs @ 65°C
