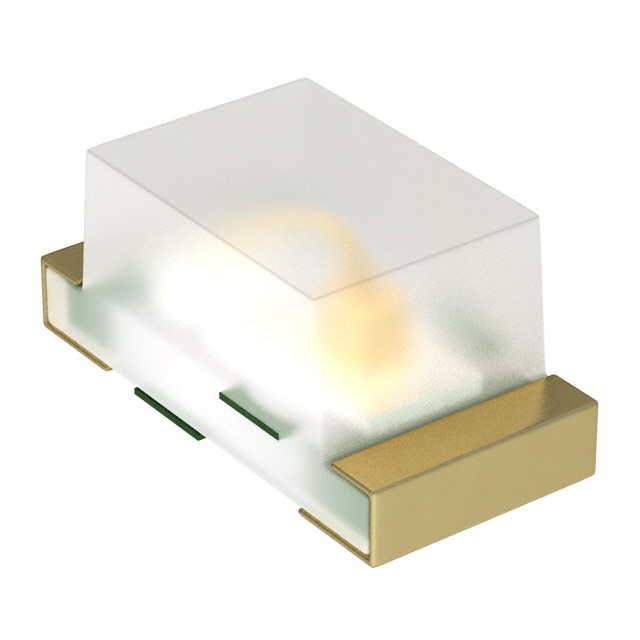

MB1111C-TR
ObsoleteStanley Electric Co
LED INDICATION - DISCRETE ROHS
Deep-Dive with AI
Search across all available documentation for this part.
MB1111C-TR
ObsoleteStanley Electric Co
LED INDICATION - DISCRETE ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MB1111C-TR |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Size [x] | 1.1 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 14 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
| Wavelength - Dominant | 470 nm |
| Wavelength - Peak | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| LCSC | Piece | 1 | $ 2.81 | |
| 200 | $ 1.12 | |||
| 500 | $ 1.08 | |||
| 1000 | $ 1.07 | |||
Description
General part information
MB1111C-TR
Blue 470nm LED Indication - Discrete 3.1V 0603 (1608 Metric)
Documents
Technical documentation and resources
No documents available
