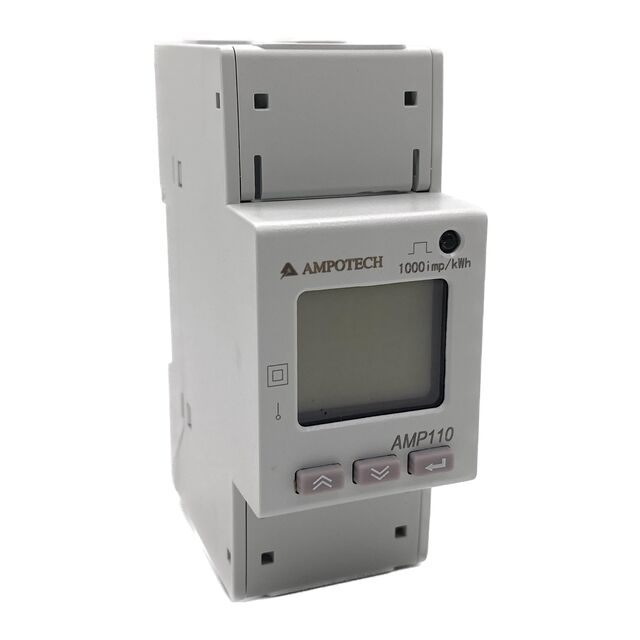

AMPOTECH-AMPOMETER-110-1PH
ActiveAmpotech Pte Ltd
POWER METER 1-PH RS485
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMPOTECH-AMPOMETER-110-1PH |
|---|---|
| Display Characters - Height [y] | 0.315 in |
| Display Characters - Height [y] | 8 mm |
| Display Type | LCD - Black Characters, White Backlight |
| Measuring Range [Max] | 120 VAC, 65 Hz, 100 A |
| Measuring Range [Min] | 45 Hz, 0 VAC, 0 A |
| Measuring Type | Wattage, Voltage, Current |
| Mounting Type | Panel Mount, DIN Rail |
| Number of Characters Per Row | 4 |
| Number of Characters Per Row | 4 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Screw Terminal |
| Type | Energy Monitor (Power Meter) |
| Voltage - Supply | Loop Power |
| Weight | 170.1 g |
| Weight | 0.375 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 240.00 | |
Description
General part information
AMPOTECH-AMPOMETER-110-1PH
Energy Monitor (Power Meter) LCD - Black Characters, White Backlight Display DIN Rail, Panel Mount
