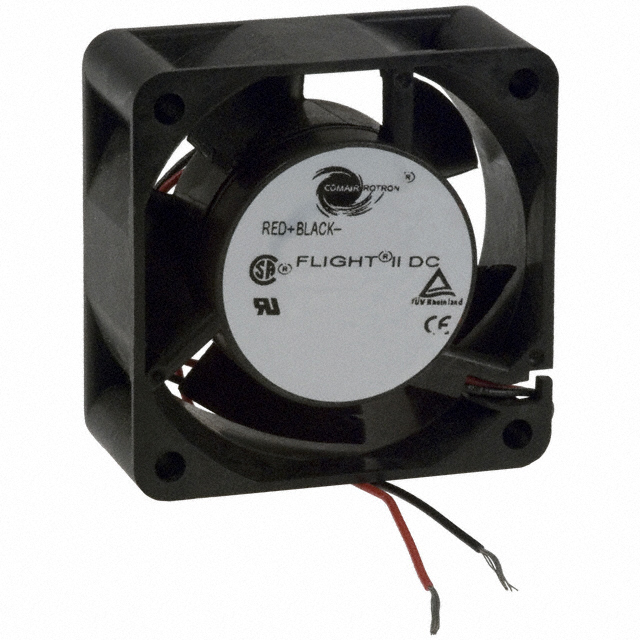

19032859A
ObsoleteComair Rotron
FAN AXIAL 60X25MM 48VDC FS48K3
Deep-Dive with AI
Search across all available documentation for this part.
19032859A
ObsoleteComair Rotron
FAN AXIAL 60X25MM 48VDC FS48K3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19032859A |
|---|---|
| Air Flow | 0.644 m³/min |
| Air Flow | 23 CFM |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 4 W |
| RPM | 5930 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 0.47 in H2O |
| Static Pressure | 117.1 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 56 VDC |
| Voltage Range [Min] | 24 VDC |
| Weight | 0.244 lb |
| Weight | 110.68 g |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
19032859A
Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 23.0 CFM (0.644m³/min) 2 Wire Leads
Documents
Technical documentation and resources
