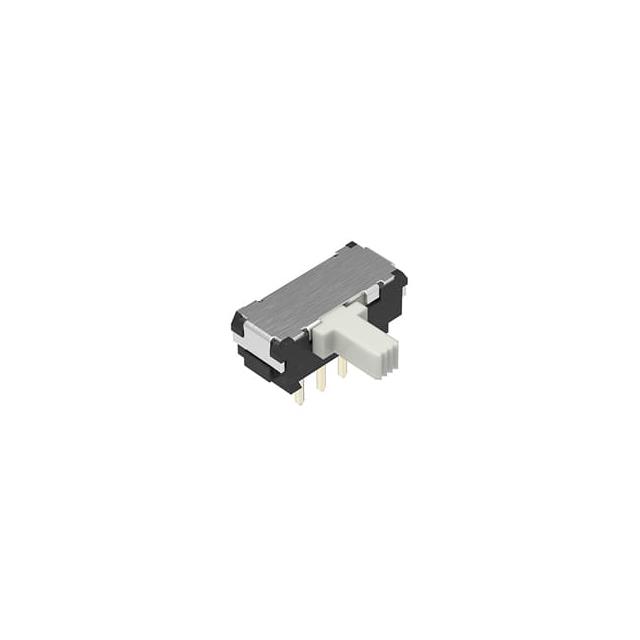

SSSS916400
ActiveAlps Alpine
SWITCH SLIDE SPDT 0.1A 12V
Deep-Dive with AI
Search across all available documentation for this part.
SSSS916400
ActiveAlps Alpine
SWITCH SLIDE SPDT 0.1A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSSS916400 |
|---|---|
| Actuator Length [x] | 4 mm |
| Actuator Type | Standard |
| Circuit | SPDT |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 306 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | On-On |
| Switch Travel | 2 mm |
| Termination Style | PC Pin |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.38 | |
| 10 | $ 1.33 | |||
| 25 | $ 1.25 | |||
| 100 | $ 1.08 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.85 | |||
| 3000 | $ 0.77 | |||
| 5000 | $ 0.72 | |||
Description
General part information
SSSS916400
Slide Switch SPDT Through Hole, Right Angle
