5149
ActivePololu

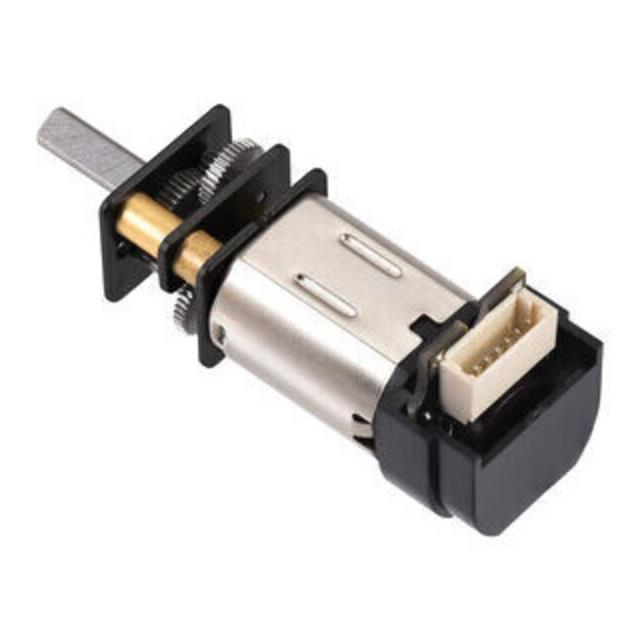

380:1 MP 6V MMGM W/ENC SIDE CON
Deep-Dive with AI
Search across all available documentation for this part.
5149
ActivePololu
380:1 MP 6V MMGM W/ENC SIDE CON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5149 |
|---|---|
| Diameter - Shaft [diameter] | 3 mm |
| Diameter - Shaft [diameter] | 0.118 in |
| Encoder Type | Incremental |
| Gear Reduction Ratio | 379.17 |
| Length - Shaft and Bearing | 9 mm |
| Length - Shaft and Bearing [x] | 0.354 in |
| Motor Type | Brushed |
| Power - Rated | 0.53 W |
| RPM | 57 RPM |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [y] | 0.472 " |
| Termination Style | Connector |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
| Weight | 0.024 lb |
| Weight | 11 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.95 | |
| 1 | $ 25.95 | |||
| 1 | $ 8.95 | |||
| 1 | $ 25.95 | |||
Description
General part information
5149
Brushed DC Motor Gearmotor 57 RPM 0.53W Incremental 6V
Documents
Technical documentation and resources
No documents available
