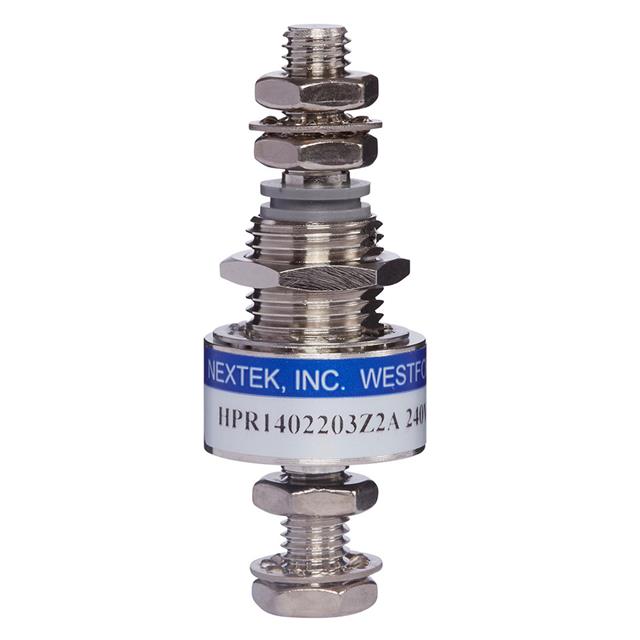

HPR1404705Z10
ActiveNexTek
HIGH-CURRENT FEEDTHROUGH FILTER,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HPR1404705Z10
ActiveNexTek
HIGH-CURRENT FEEDTHROUGH FILTER,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HPR1404705Z10 |
|---|---|
| Current | 140 A |
| Mounting Type | Bolt Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial - Threaded Terminals |
| Size / Dimension [diameter] | 25.3 mm |
| Size / Dimension [diameter] | 0.996 " |
| Size / Dimension [x] | 2.626 inches |
| Size / Dimension [x] | 66.7 mm |
| Values | 4.7 µF |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 105.53 | |
| 10 | $ 86.05 | |||
| 25 | $ 79.32 | |||
| 50 | $ 78.00 | |||
Description
General part information
HPR1404705Z10
EMI Filter Order Channel C = 4.7µF 140 A Axial - Threaded Terminals
Documents
Technical documentation and resources
