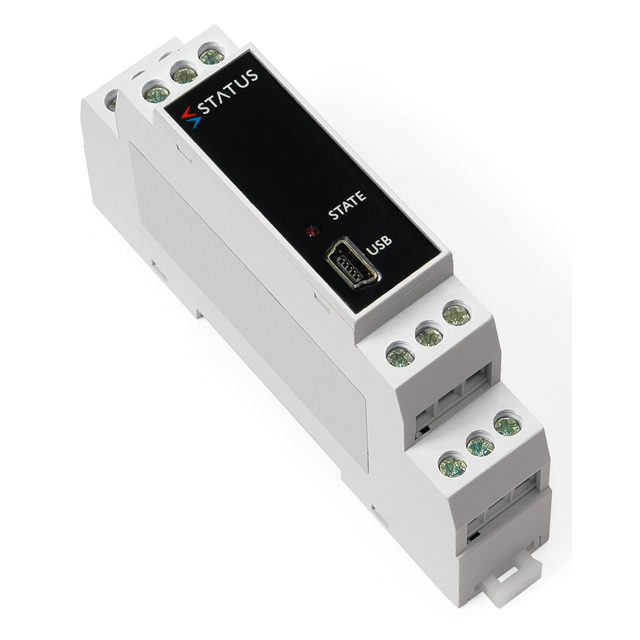

SEM1600VI
ActiveStatus Instruments Ltd
MA / VOLTAGE REPEATER CONDITIONE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SEM1600VI
ActiveStatus Instruments Ltd
MA / VOLTAGE REPEATER CONDITIONE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SEM1600VI |
|---|---|
| Features | Loop Powered |
| Input Range (Current, Voltage) [Max] [x] | 50 mA, 50 V |
| Input Range (Current, Voltage) [Min] [x] | -50 V, -50 mA |
| Input Type | Voltage, Current |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Range | 10 V |
| Output Range [Max] | 20 mA |
| Output Range [Min] | 0 mA |
| Output Type | Current, Voltage |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply [Max] | 32 VAC, 48 V |
| Voltage - Supply [Min] | 10 VAC, 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 198.80 | |
Description
General part information
SEM1600VI
MA / VOLTAGE REPEATER CONDITIONE
