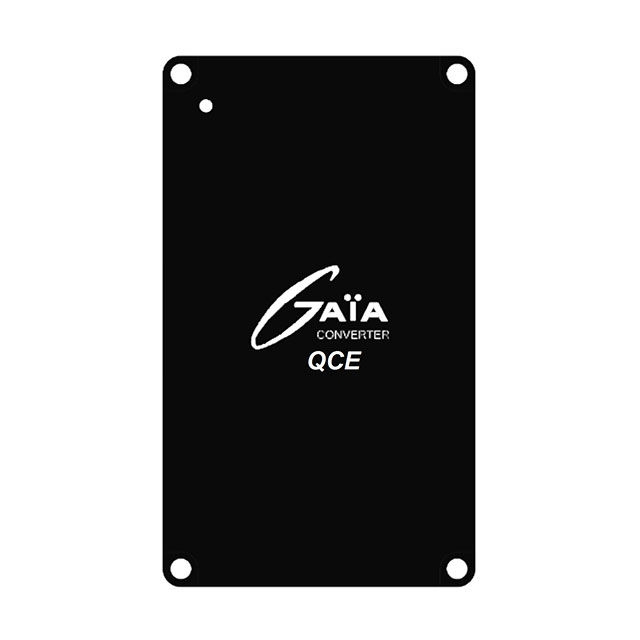

MGDSK100MF
ActiveGaia Converter
DC DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGDSK100MF
ActiveGaia Converter
DC DC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGDSK100MF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 6.5 A |
| Efficiency | 88 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 18-DIP Module |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 73.3 mm |
| Size / Dimension [x] | 2.88 in |
| Size / Dimension [y] | 48.26 mm |
| Size / Dimension [y] | 48.3 mm |
| Size / Dimension [z] | 12.8 mm |
| Size / Dimension [z] | 0.49 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 60 V |
| Voltage - Input (Min) [Min] | 11 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 232.01 | |
| 6 | $ 228.26 | |||
| 12 | $ 224.52 | |||
| 27 | $ 209.55 | |||
Description
General part information
MGDSK100MF
Isolated Module DC DC Converter 1 Output 15V 6.5A 11V - 60V Input
