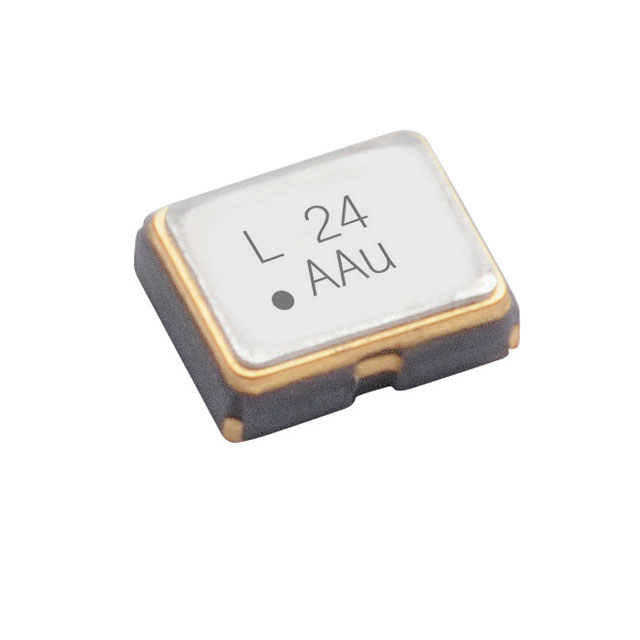

S318025T-32.000-R
ActiveAker Technology Corp
XTAL OSC XO 32.0000MHZ HCMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S318025T-32.000-R
ActiveAker Technology Corp
XTAL OSC XO 32.0000MHZ HCMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S318025T-32.000-R |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 6 mA |
| Frequency | 32 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 25 | $ 0.85 | |
| 100 | $ 0.60 | |||
| 200 | $ 0.57 | |||
| 1000 | $ 0.49 | |||
Description
General part information
S318025T-32.000-R
32 MHz XO (Standard) HCMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Documents
Technical documentation and resources
