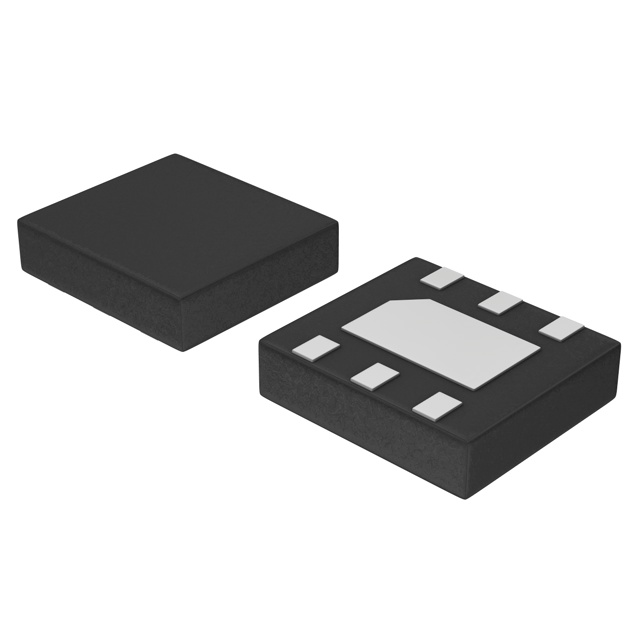

NCV8402AMNWT1G - 6-VDFN_506AX

NCV8402AMNWT1G

Active
ON Semiconductor

SELF-PROTECTED N-CHANNEL POWER MOSFET/ REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetPackage Drawing-506DK-DFNW6 3x3, 0.95P
NCV8402AMNWT1G - 6-VDFN_506AX

NCV8402AMNWT1G

Active
ON Semiconductor

SELF-PROTECTED N-CHANNEL POWER MOSFET/ REEL

Deep-Dive with AI

DocumentsDatasheetPackage Drawing-506DK-DFNW6 3x3, 0.95P

Technical Specifications

Parameters and characteristics for this part

SpecificationNCV8402AMNWT1G
Current - Output (Max) [Max]2 A
Fault ProtectionOver Temperature, Current Limiting (Fixed), Over Voltage
FeaturesAuto Restart
GradeAutomotive
Input TypeNon-Inverting
InterfaceOn/Off
Mounting TypeSurface Mount
Number of Outputs1
Operating Temperature [Max]150 °C
Operating Temperature [Min]-40 °C
Output ConfigurationLow Side
Output TypeN-Channel
Package / Case6-VDFN Exposed Pad
QualificationAEC-Q100
Ratio - Input:Output [custom]1:1
Rds On (Typ)165 mOhm
Supplier Device Package6-DFN
Supplier Device Package [x]3
Supplier Device Package [y]3.3
Switch TypeGeneral Purpose
Voltage - Load42 V
Voltage - Supply (Vcc/Vdd)False

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.21
10$ 1.08
25$ 1.03
100$ 0.79
250$ 0.70
500$ 0.66
1000$ 0.51
Digi-Reel® 1$ 1.21
10$ 1.08
25$ 1.03
100$ 0.79
250$ 0.70
500$ 0.66
1000$ 0.51
Tape & Reel (TR) 3000$ 0.49
6000$ 0.47
15000$ 0.46
NewarkEach 2500$ 0.49
10000$ 0.47
ON SemiconductorN/A 1$ 0.42

Description

General part information

NCV8402AMNWT1G

NCV8402 is a three terminal protected Low-Side Smart Discrete device. The protection features include overcurrent, overtemperature, ESD and integrated Drain-to-Gate clamping for overvoltage protection. This device offers protection and is suitable for harsh automotive environments.
