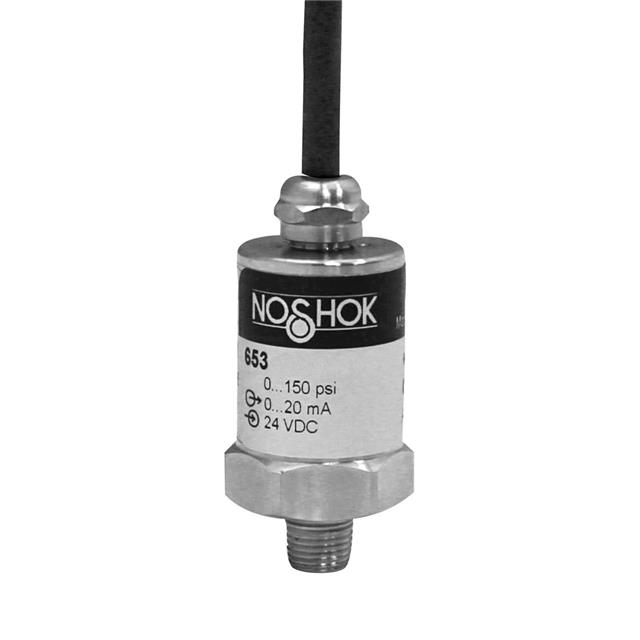

653-30-1-1-2-36
ActiveNOSHOK
COMPACT PRESSURE TRANSMITTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
653-30-1-1-2-36
ActiveNOSHOK
COMPACT PRESSURE TRANSMITTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 653-30-1-1-2-36 |
|---|---|
| Accuracy | 0.5 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 30 PSI |
| Maximum Pressure [Max] | 206.84 kPa |
| Operating Pressure | 206.84 kPa |
| Operating Pressure | 30 PSI |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Output Type | Analog Current |
| Package / Case | Cylinder, Threaded |
| Port Size [custom] | NPT |
| Port Size [custom] | Male |
| Port Size [x] | 0.25 " |
| Port Size [x] | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Voltage - Supply [Max] | 36 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 130.00 | |
Description
General part information
653-30-1-1-2-36
Pressure Sensor 30PSI (206.84kPa) Gauge Male - 1/4" (6.35mm) NPT 4 ~ 20 mA Cylinder, Threaded
