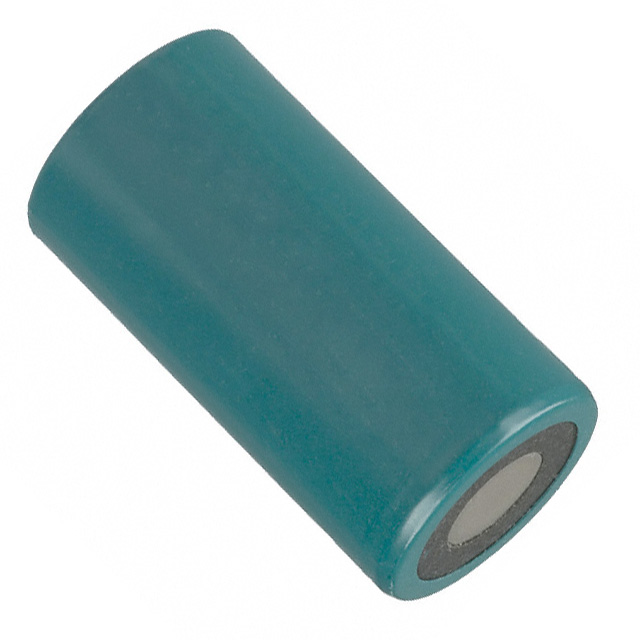

HR-SCU
ActiveFDK America, Inc., a member of Fujitsu Group
BATTERY NIMH 1.2V 2.7AH SC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HR-SCU
ActiveFDK America, Inc., a member of Fujitsu Group
BATTERY NIMH 1.2V 2.7AH SC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HR-SCU |
|---|---|
| Battery Cell Size | SC |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity | 2.7 Ah |
| Discharge Rate | 540 mA |
| Size / Dimension [diameter] | 23.5 mm |
| Size / Dimension [diameter] | 0.93 in |
| Size / Dimension [z] | 1.74 in |
| Size / Dimension [z] | 44.2 mm |
| Standard Charge Current | 300 mA |
| Standard Charge Time | 16 Hrs |
| Termination Style | Flat Top (Non-Extending) |
| Voltage - Rated | 1.2 V |
| Weight | 59.42 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.74 | |
| 10 | $ 7.24 | |||
| 50 | $ 6.34 | |||
| 100 | $ 5.99 | |||
| 250 | $ 5.56 | |||
| 500 | $ 5.25 | |||
| 1000 | $ 4.96 | |||
Description
General part information
HR-SCU
SC 1.2 V Nickel Metal Hydride Battery Rechargeable (Secondary) 2.7Ah
