7101D
ActiveELECTROSWITCH
SWITCH TOGGLE SPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7101D
ActiveELECTROSWITCH
SWITCH TOGGLE SPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7101D |
|---|---|
| Actuator Length [x] | 14.27 mm |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | SPDT |
| Current Rating (Amps) | 6 A |
| Electrical Life | 10000 Cycles |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -10 °C |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.72 | |
| 10 | $ 6.05 | |||
| 25 | $ 5.75 | |||
| 50 | $ 5.50 | |||
| 100 | $ 5.32 | |||
| 250 | $ 5.05 | |||
| 500 | $ 4.62 | |||
| 1000 | $ 4.41 | |||
Description
General part information
7101D

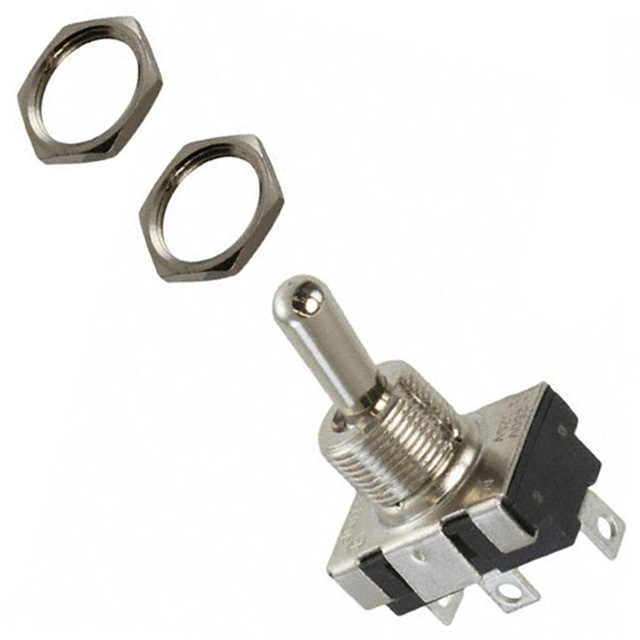

Toggle Switch SPDT Panel Mount
Documents
Technical documentation and resources
