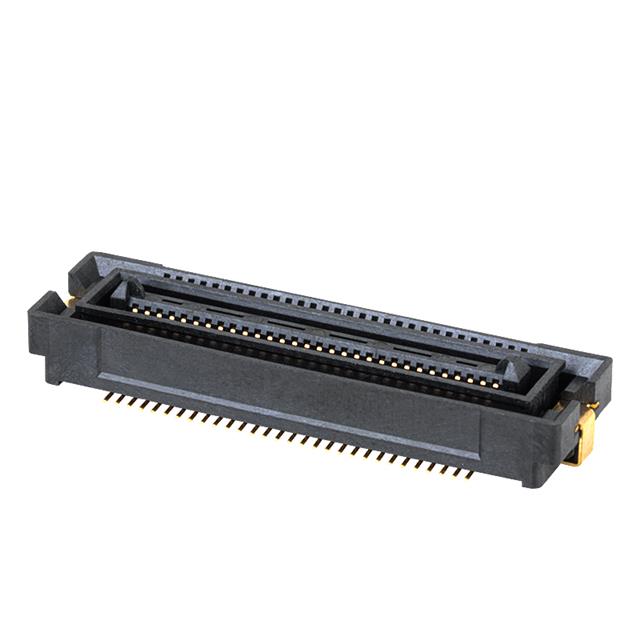

GGBC203-3002B001C1AH
ActiveGreenconn
0.8MM PITCH BOARD TO BOARD FLOAT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GGBC203-3002B001C1AH
ActiveGreenconn
0.8MM PITCH BOARD TO BOARD FLOAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GGBC203-3002B001C1AH |
|---|---|
| Connector Type | Floating, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Pick and Place, Board Guide, Solder Retention |
| Height Above Board | 4.7 mm |
| Height Above Board | 0.185 in |
| Mated Stacking Heights | 9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.78 | |
| 10 | $ 2.89 | |||
| 100 | $ 2.23 | |||
| Digi-Reel® | 1 | $ 3.78 | ||
| 10 | $ 2.89 | |||
| 100 | $ 2.23 | |||
| Tape & Reel (TR) | 450 | $ 1.90 | ||
| 900 | $ 1.77 | |||
| 1350 | $ 1.70 | |||
| 2250 | $ 1.62 | |||
| 3150 | $ 1.57 | |||
| 4500 | $ 1.52 | |||
Description
General part information
GGBC203-3002B001C1AH
60 Position Connector Receptacle, Floating Surface Mount Gold
Documents
Technical documentation and resources
