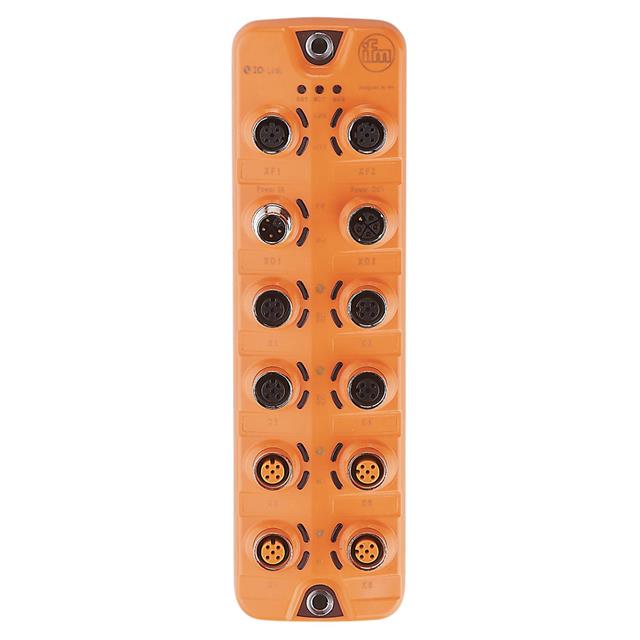

AL1422
Activeifm efector, inc.
IO-LINK MASTER,ETHERNET/IP,8 IO-
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AL1422 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cULus, EAC, UKCA |
| Current - Output (Max) [Max] | 8 A |
| DC Voltage - Input (Max) [Max] | 30 V |
| DC Voltage - Input (Min) [Min] | 20 V |
| Input Type | DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 208 mm |
| Size / Dimension [x] | 8.19 " |
| Size / Dimension [y] | 2.33 in |
| Size / Dimension [y] | 59.3 mm |
| Size / Dimension [z] | 0.83 in |
| Size / Dimension [z] | 21 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 533.00 | |
Description
General part information
AL1422
IO-LINK MASTER,ETHERNET/IP,8 IO-
Documents
Technical documentation and resources
No documents available
