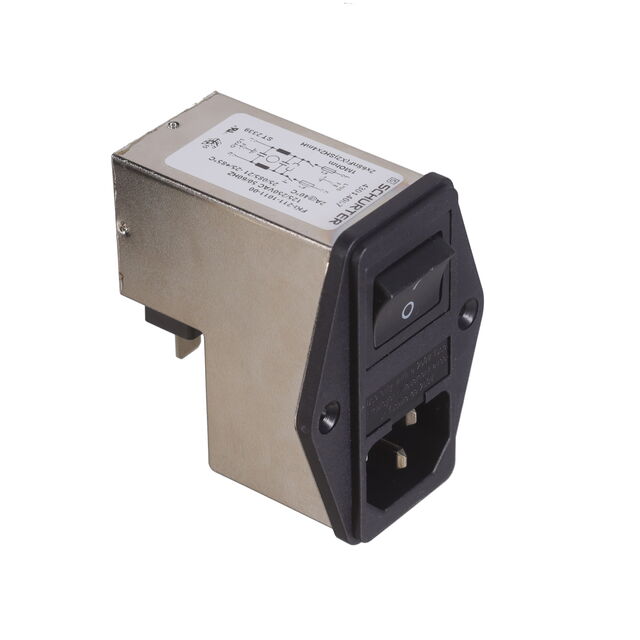

4304.4067
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
4304.4067
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4304.4067 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | ENEC, cULus |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Current Rating - Filter | 2 A |
| Features | Shielded |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Fuse Holder, Drawer | Fuse Holder |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Right Angle, Flange |
| Panel Cutout Dimensions [x] | 29.5 mm |
| Panel Cutout Dimensions [y] | 61 mm |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 54.20 | |
| 50 | $ 43.73 | |||
Description
General part information
4304.4067
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange, Right Angle
