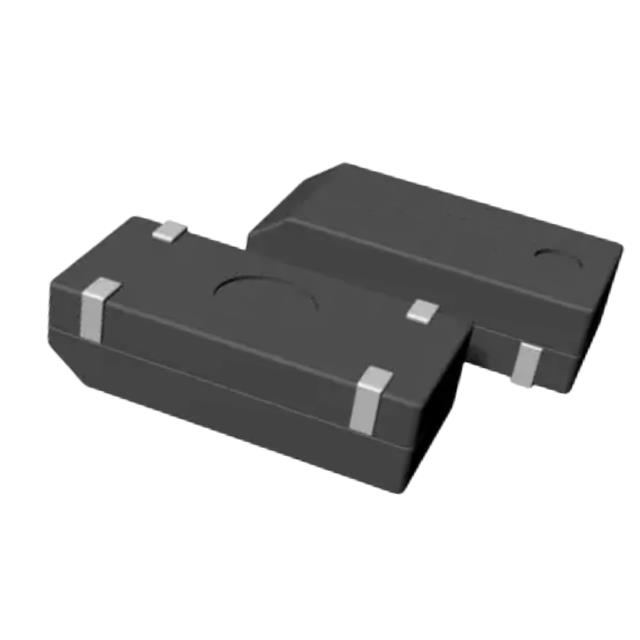

YQ12M500S33418
ActiveNextGen Components
12.5MHZ CRYSTAL 30PPM 18PF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YQ12M500S33418
ActiveNextGen Components
12.5MHZ CRYSTAL 30PPM 18PF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YQ12M500S33418 |
|---|---|
| Frequency | 12.5 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] | 0.146 in |
| Height - Seated (Max) [Max] | 3.7 mm |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, J-Lead |
| Size / Dimension [x] | 0.492 in |
| Size / Dimension [x] | 12.5 mm |
| Size / Dimension [y] | 4.6 mm |
| Size / Dimension [y] | 0.181 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.79 | |
Description
General part information
YQ12M500S33418
12.5 MHz ±30ppm Crystal 18pF 4-SMD, J-Lead
