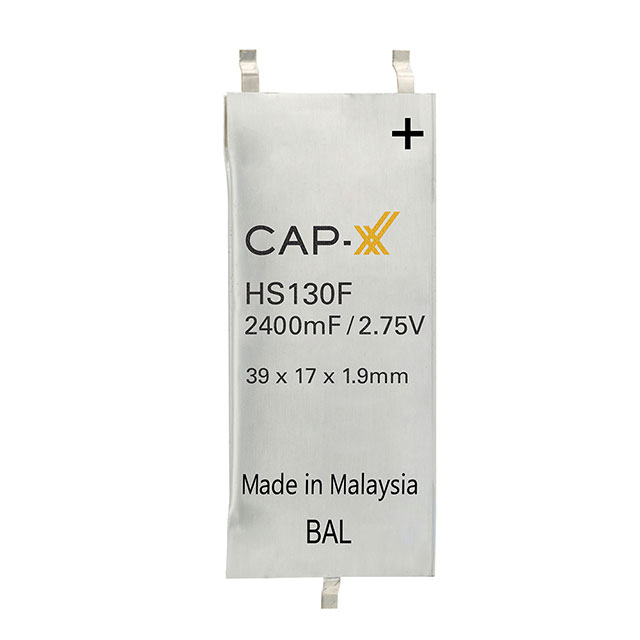

HS130F
ActiveCAP-XX Ltd Supercapacitors
CAP 2400MF 2.75V -40-+85C
Deep-Dive with AI
Search across all available documentation for this part.
HS130F
ActiveCAP-XX Ltd Supercapacitors
CAP 2400MF 2.75V -40-+85C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HS130F |
|---|---|
| Capacitance | 2.4 F |
| ESR (Equivalent Series Resistance) | 30 mOhms |
| Height - Seated (Max) [Max] [z] | 1.9 mm |
| Height - Seated (Max) [Max] [z] | 0.075 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD |
| Size / Dimension [x] | 1.535 in |
| Size / Dimension [x] | 39 mm |
| Size / Dimension [y] | 17 mm |
| Size / Dimension [y] | 0.669 in |
| Tolerance | 20 % |
| Voltage - Rated | 2.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.00 | |
| 100 | $ 12.00 | |||
| 200 | $ 9.83 | |||
| 500 | $ 8.64 | |||
| 1000 | $ 7.45 | |||
| 2000 | $ 6.26 | |||
Description
General part information
HS130F
2.4 F (EDLC) Supercapacitor 2.75 V 2-SMD 30mOhm
Documents
Technical documentation and resources
No documents available
