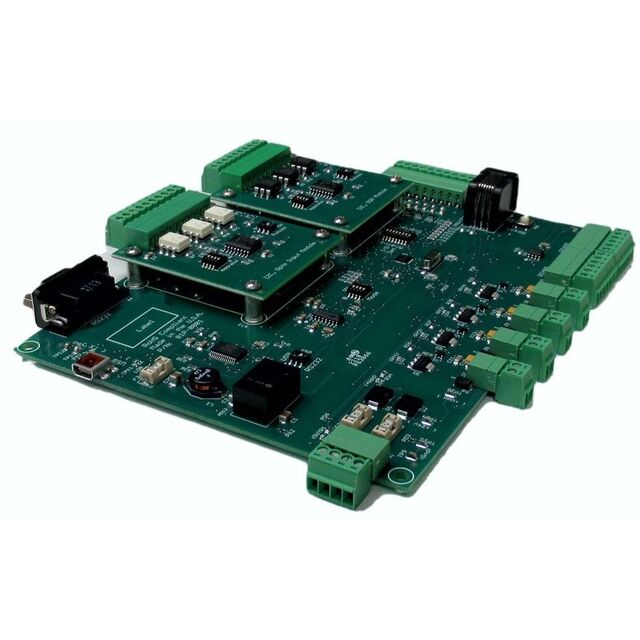

81P-0001
ActiveGraves Electronics LLC
EMBEDDED MICROCONTROLLER BOARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
81P-0001
ActiveGraves Electronics LLC
EMBEDDED MICROCONTROLLER BOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 81P-0001 |
|---|---|
| Analog Input:Output [custom] | 8 |
| Analog Input:Output [custom] | 0 |
| Core Processor | PIC18F46K22 |
| Digital I/O Lines | 8 |
| Expansion Site/Bus | SPI, I2C, RS-485 |
| Form Factor | 3.5 in |
| Number of Cores | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| RS-232 (422, 485) | 1 |
| Size / Dimension [x] | 171.7 mm |
| Size / Dimension [x] | 6.759 in |
| Size / Dimension [y] | 5.26 in |
| Size / Dimension [y] | 133.6 mm |
| Speed | 11.0592 MHz |
| USB | Mini USB, USB, UART |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 303.51 | |
| 10 | $ 298.51 | |||
| 25 | $ 293.51 | |||
| 50 | $ 288.51 | |||
Description
General part information
81P-0001
Single Board Computer 11.0592MHz 1 Core RAM PIC18F46K22
