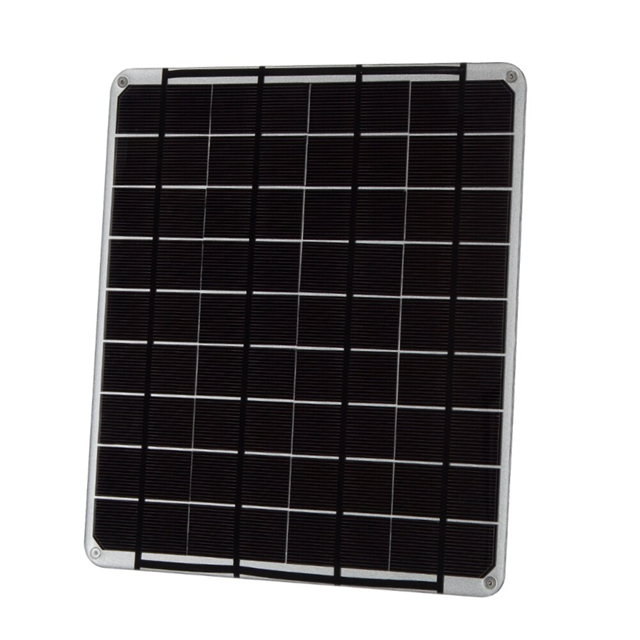

P107-S
ActiveVoltaic Systems
9W 18V SOLAR PANEL URETHN SILVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P107-S
ActiveVoltaic Systems
9W 18V SOLAR PANEL URETHN SILVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P107-S |
|---|---|
| Current - Short Circuit (Isc) | 510 mA |
| Current @ Pmpp | 470 mA |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 9.21 W |
| Size / Dimension [x] | 10.118 " |
| Size / Dimension [x] | 257 mm |
| Size / Dimension [y] | 221 mm |
| Size / Dimension [y] | 8.701 in |
| Size / Dimension [z] | 0.197 in |
| Size / Dimension [z] | 5 mm |
| Type | Monocrystalline |
| Voltage - Open Circuit | 23 V |
| Voltage @ Pmpp | 19.51 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 89.00 | |
| 10 | $ 82.33 | |||
| 50 | $ 80.10 | |||
| 100 | $ 73.63 | |||
Description
General part information
P107-S
Monocrystalline Solar Cell 9.21 W 23 V
Documents
Technical documentation and resources
