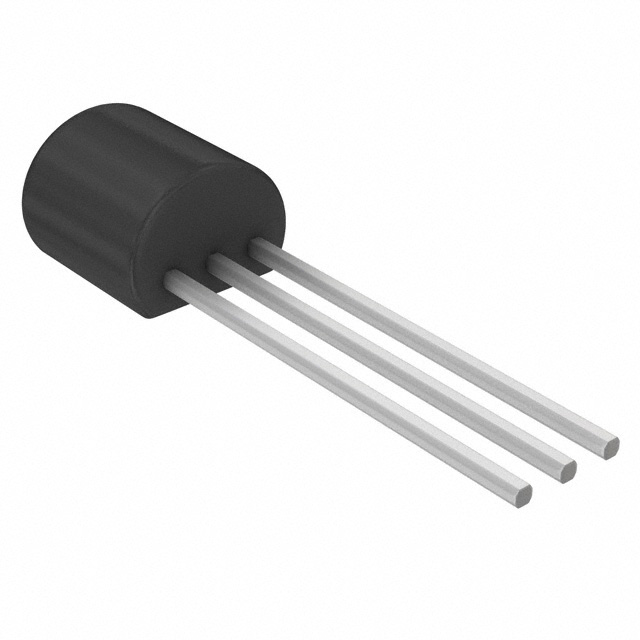

2N5089 PBFREE
ActiveCentral Semiconductor Corp
TRANS NPN 25V 0.05A TO-92
Deep-Dive with AI
Search across all available documentation for this part.
2N5089 PBFREE
ActiveCentral Semiconductor Corp
TRANS NPN 25V 0.05A TO-92
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2N5089 PBFREE |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 50 mA |
| Current - Collector Cutoff (Max) [Max] | 50 nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 400 hFE |
| Frequency - Transition | 50 MHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | TO-226-3, TO-92-3 |
| Power - Max [Max] | 625 mW |
| Supplier Device Package | TO-92-3 |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.47 | |
| 10 | $ 0.40 | |||
| 100 | $ 0.28 | |||
| 2500 | $ 0.16 | |||
| 5000 | $ 0.15 | |||
| 10000 | $ 0.14 | |||
Description
General part information
2N5089 PBFREE
Bipolar (BJT) Transistor NPN 25 V 50 mA 50MHz 625 mW Through Hole TO-92-3
Documents
Technical documentation and resources
No documents available
