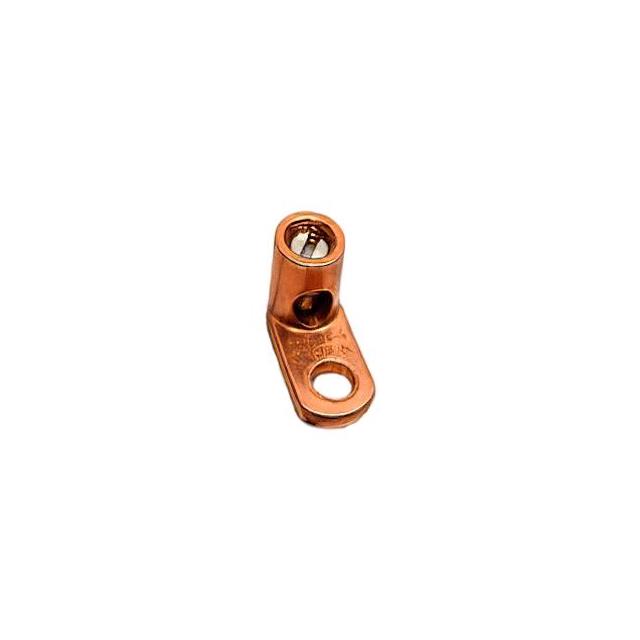

L70
ActiveBlackburn, a T & B Brand
MECHANICAL LUG, 13/64" STUD, 8-1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L70
ActiveBlackburn, a T & B Brand
MECHANICAL LUG, 13/64" STUD, 8-1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L70 |
|---|---|
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.875 in |
| Length - Overall [x] | 22.23 mm |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Terminal Type | Circular |
| Termination | Crimp |
| Width - Outer Edges [custom] | 13.49 mm |
| Width - Outer Edges [custom] | 0.531 " |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.64 | |
Description
General part information
L70
Ring Terminal Connector Circular 14 AWG Crimp
Documents
Technical documentation and resources
