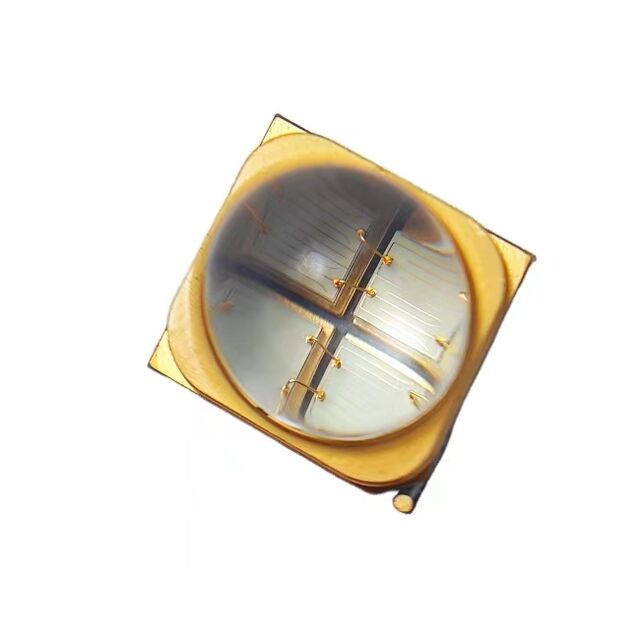

WLS-6868B480-2C2Z6-GH45B
ActiveWeilinsen
620M 660NM SMD LED CHIP 3W 4W 12
Deep-Dive with AI
Search across all available documentation for this part.
WLS-6868B480-2C2Z6-GH45B
ActiveWeilinsen
620M 660NM SMD LED CHIP 3W 4W 12
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WLS-6868B480-2C2Z6-GH45B |
|---|---|
| Color | Blue |
| Current - Max [Max] | 1.5 A |
| Height - Seated (Max) [Max] | 0.191 " |
| Height - Seated (Max) [Max] | 4.85 mm |
| Lumens/Watt @ Current - Test | 24 lm/W |
| Luminous Flux @ Current/Temperature | 220 lm |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Size / Dimension [x] | 6.5 mm |
| Size / Dimension [x] | 0.256 " |
| Size / Dimension [y] | 6.5 mm |
| Size / Dimension [y] | 0.256 in |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 6.5 V |
| Wavelength | 483 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100 | $ 0.85 | |
| 300 | $ 0.84 | |||
| 500 | $ 0.83 | |||
| 1000 | $ 0.81 | |||
Description
General part information
WLS-6868B480-2C2Z6-GH45B
LED Lighting Color - Blue 483nm (480nm ~ 485nm) 2-SMD, No Lead Exposed Pad
Documents
Technical documentation and resources
No documents available
