P108
ActiveVoltaic Systems

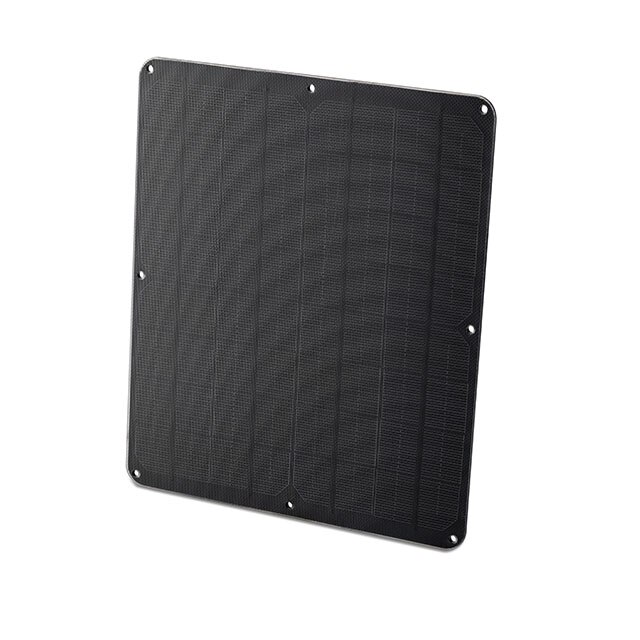

9W 18V SOLAR PANEL ETF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P108 |
|---|---|
| Current - Short Circuit (Isc) | 610 mA |
| Current @ Pmpp | 570 mA |
| Package / Case | Module |
| Power (Watts) - Max [Max] | 9.92 W |
| Size / Dimension [x] | 10.787 " |
| Size / Dimension [x] | 274 mm |
| Size / Dimension [y] | 223 mm |
| Size / Dimension [y] | 8.78 " |
| Size / Dimension [z] | 0.157 " |
| Size / Dimension [z] | 4 mm |
| Type | Monocrystalline |
| Voltage - Open Circuit | 20.45 V |
| Voltage @ Pmpp | 17.34 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 49.00 | |
Description
General part information
P108
Monocrystalline Solar Cell 9.92 W 20.45 V
