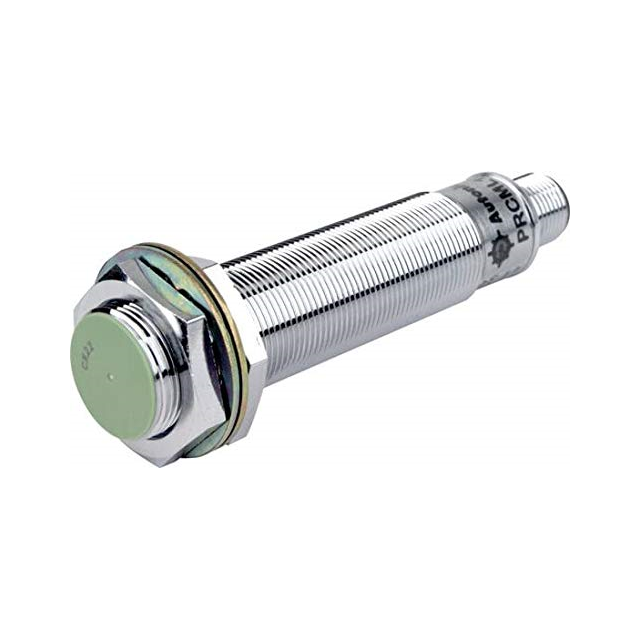

PRCML12-2DP
ActiveAUTONICS
PROXIMITY SENSOR/PROXIMITY SWITCH ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRCML12-2DP
ActiveAUTONICS
PROXIMITY SENSOR/PROXIMITY SWITCH ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRCML12-2DP |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M12 |
| Response Frequency | 500 Hz |
| Sensing Distance | 0.079 in |
| Sensing Distance | 2 mm |
| Sensor Type | Inductive |
| Shielding | Shielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PRCML12-2DP
PROXIMITY SENSOR/PROXIMITY SWITCH ROHS
