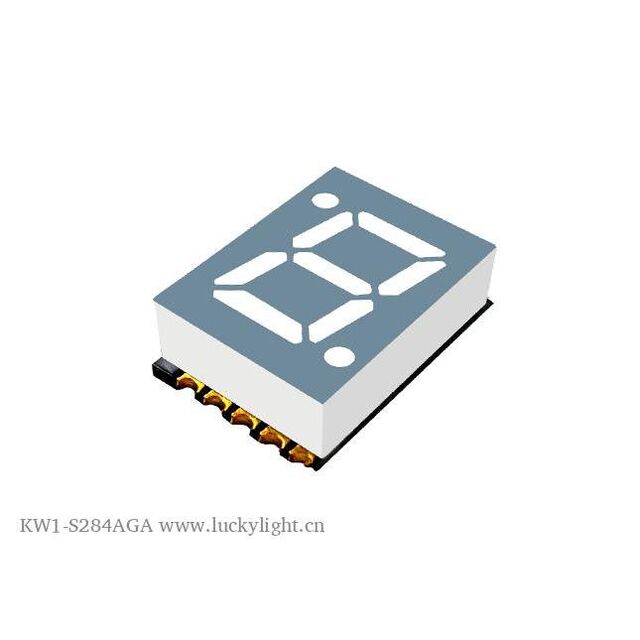

KW1-S284AGA
ActiveLuckylight
0.28INCH (7.00MM), YELLOW GREEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KW1-S284AGA
ActiveLuckylight
0.28INCH (7.00MM), YELLOW GREEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW1-S284AGA |
|---|---|
| Color | Yellow-Green |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 7.11 mm |
| Digit/Alpha Size | 0.28 in |
| Display Type | 7-Segment |
| Millicandela Rating | 8 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 11-SMD, No Lead |
| Power Dissipation (Max) [Max] | 48 mW |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [y] | 0.295 in |
| Size / Dimension [y] | 7.5 mm |
| Size / Dimension [z] | 11 mm |
| Size / Dimension [z] | 0.433 in |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 575 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 50 | $ 0.50 | |
| 100 | $ 0.45 | |||
| 500 | $ 0.40 | |||
Description
General part information
KW1-S284AGA
Display Modules - LED Character and Numeric Yellow-Green 7-Segment 1 Character Common Anode 2V 20mA 0.394" H x 0.295" W x 0.433" D (10.00mm x 7.50mm x 11.00mm) 11-SMD, No Lead
