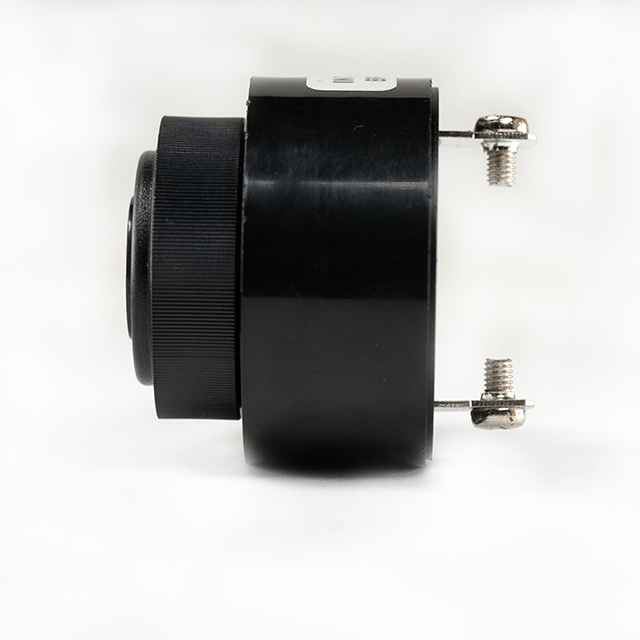

BRP4535S-24-C
ActiveIntervox
BUZZER PIEZO 24V 43.5MM PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BRP4535S-24-C
ActiveIntervox
BUZZER PIEZO 24V 43.5MM PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BRP4535S-24-C |
|---|---|
| Current - Supply | 40 mA |
| Driver Circuitry | Internally Driven, Indicator |
| Frequency | 2.9 kHz |
| Height - Seated (Max) [Max] [z] | 35 mm |
| Height - Seated (Max) [Max] [z] | 1.378 in |
| Input Type | DC |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Size / Dimension [diameter] | 43.5 mm |
| Size / Dimension [diameter] | 1.713 " |
| Sound Pressure Level (SPL) | 95 dB |
| Technology | Piezo |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BRP4535S-24-C
Buzzers Indicator, Internally Driven Piezo 24 V 40mA 2.9kHz 95dB @ 24V, 30cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
