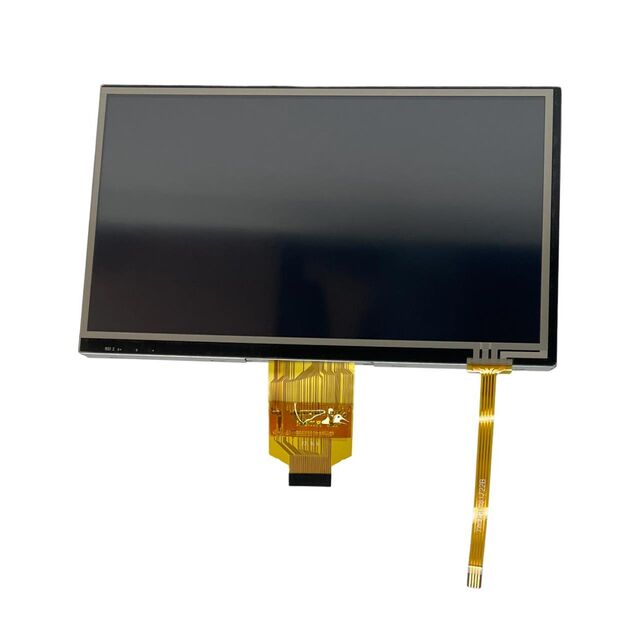

HDA700WST-3SHL-I
ActiveHantronix Inc
GRAPHIC DISPLAY TFT RGB 7"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDA700WST-3SHL-I
ActiveHantronix Inc
GRAPHIC DISPLAY TFT RGB 7"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDA700WST-3SHL-I |
|---|---|
| Background Color | Black |
| Backlight | LED |
| Diagonal Screen Size | 177.8 mm |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [y] | 0.15 mm |
| Dot Pitch [z] | 0.14 mm |
| Dot Pixels [x] | 1024 |
| Dot Pixels [y] | 600 pixels |
| Graphics Color | Green, Red, Blue |
| Touchscreen | Resistive |
| Viewing Area [x] | 155.08 mm |
| Viewing Area [y] | 86.92 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.96 | |
Description
General part information
HDA700WST-3SHL-I
Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color 6-Bit/8-Bit, LVDS 7" (177.80mm) 1024 x 600
