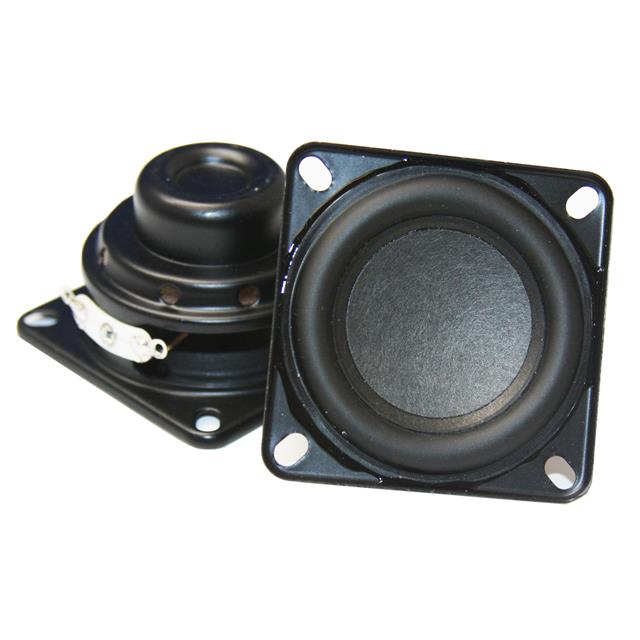

CS45-04D20-28-1
ActiveChallenge Electronics
SPEAKER 4 OHM 4W 84DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS45-04D20-28-1 |
|---|---|
| Distortion Rating [Max] | 10 % |
| Efficiency - dBA | 84 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 200 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 160 Hz |
| Height - Seated (Max) [Max] | 28.1 mm |
| Height - Seated (Max) [Max] | 1.106 " |
| Impedance | 4 Ohms |
| Material - Cone | Foam |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 6 W |
| Power - Rated | 4 W |
| Shape | Rectangular |
| Size / Dimension [x] | 45.2 mm |
| Size / Dimension [x] | 1.78 " |
| Size / Dimension [y] | 45.2 mm |
| Size / Dimension [y] | 1.78 " |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CS45-04D20-28-1
4 Ohms General Purpose Speaker 4 W 160 Hz ~ 20 kHz Top Rectangular
