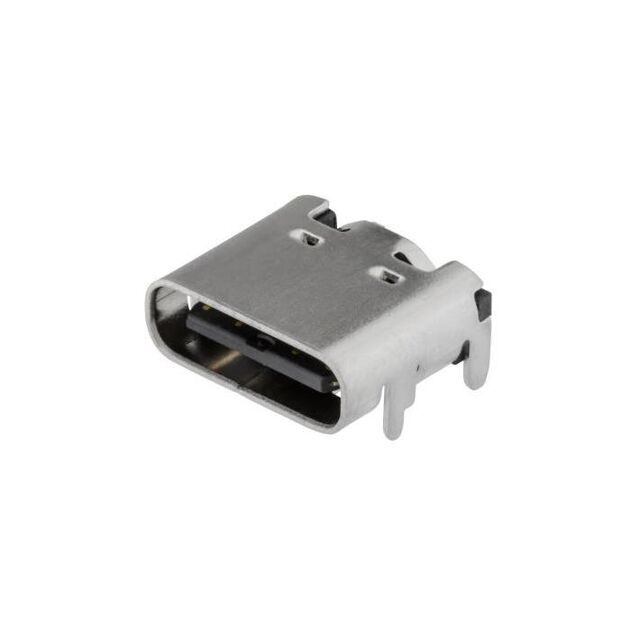

LUB-C108D-007-J-19
ActiveLinkplex
CONN USB 2.0 TYPE C 16P SMT
Deep-Dive with AI
Search across all available documentation for this part.
LUB-C108D-007-J-19
ActiveLinkplex
CONN USB 2.0 TYPE C 16P SMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LUB-C108D-007-J-19 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Tin, Gold |
| Current Rating (Amps) | 0.25 A, 1.25 A, 5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 24 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.13 | |
| 10 | $ 0.86 | |||
| 25 | $ 0.77 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.60 | |||
| Digi-Reel® | 1 | $ 1.13 | ||
| 10 | $ 0.86 | |||
| 25 | $ 0.77 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.60 | |||
| Tape & Reel (TR) | 800 | $ 0.53 | ||
| 1600 | $ 0.49 | |||
| 2400 | $ 0.47 | |||
| 4000 | $ 0.45 | |||
| 5600 | $ 0.43 | |||
| 8000 | $ 0.42 | |||
| 20000 | $ 0.39 | |||
Description
General part information
LUB-C108D-007-J-19
USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole
Documents
Technical documentation and resources
No documents available
