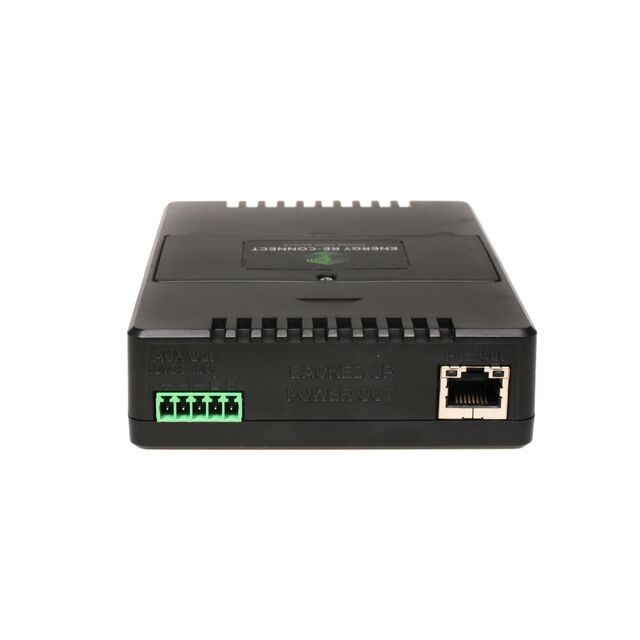

ERC-9005AF
ActiveEnergy Re-Connect Ltd.
POE UPS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ERC-9005AF
ActiveEnergy Re-Connect Ltd.
POE UPS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ERC-9005AF |
|---|---|
| Approval Agency | CE, FCC, TUV, UL, cUL, CB |
| Compliance | IEEE802.3af |
| Current - Output | 800 mA |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Efficiency | 96 % |
| Features | PoE Power Back Up |
| Input Connector | RJ45 (Data, Power), Terminal Block |
| Mounting Type | Bracket Mount, DIN Rail |
| Number of Ports | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Terminal Block, RJ45 (Data, Power) |
| Power (Watts) - Per Port [Max] | 17 W |
| Power (Watts) - Per Port [Min] | 11.4 W |
| Size / Dimension [x] | 5.19 in |
| Size / Dimension [x] | 131.8 mm |
| Size / Dimension [y] | 3.85 in |
| Size / Dimension [y] | 97.8 mm |
| Size / Dimension [z] | 30 mm |
| Size / Dimension [z] | 1.18 in |
| Standard Number | 60950-1 |
| Type | PoE UPS/Midspan |
| Voltage - Input [Max] | 30 V, 57 V |
| Voltage - Input [Min] | 44 V, 10 V |
| Voltage - Output | 24 V, 12 V |
| Voltage - Output [Max] | 56 V |
| Voltage - Output [Min] | 40.5 V |
| Weight | 0.639 lb |
| Weight | 289.84 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 176.75 | |
| 12 | $ 164.13 | |||
| 36 | $ 157.81 | |||
Description
General part information
ERC-9005AF
40.5 ~ 56V; 12V, 24V Power Over Ethernet (POE) 1 Port PoE UPS/Midspan 10/100/1000 Mbps Data Rate
