5254533C063
ActiveEase Electronics

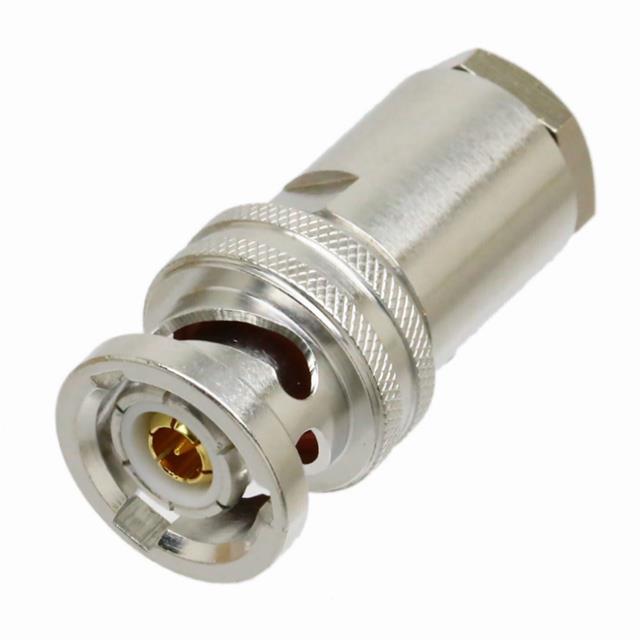

CONN TRIAX PLUG 50 OHM CBL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5254533C063
ActiveEase Electronics
CONN TRIAX PLUG 50 OHM CBL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5254533C063 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Gold |
| Center Contact Plating | Gold |
| Connector Style | Triax |
| Connector Type | Male Pin, Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull |
| Frequency - Max [Max] | 500 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 84.32 | |
| 10 | $ 65.53 | |||
| 25 | $ 59.58 | |||
| 50 | $ 55.57 | |||
| 100 | $ 51.94 | |||
Description
General part information
5254533C063
Triax Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line)
