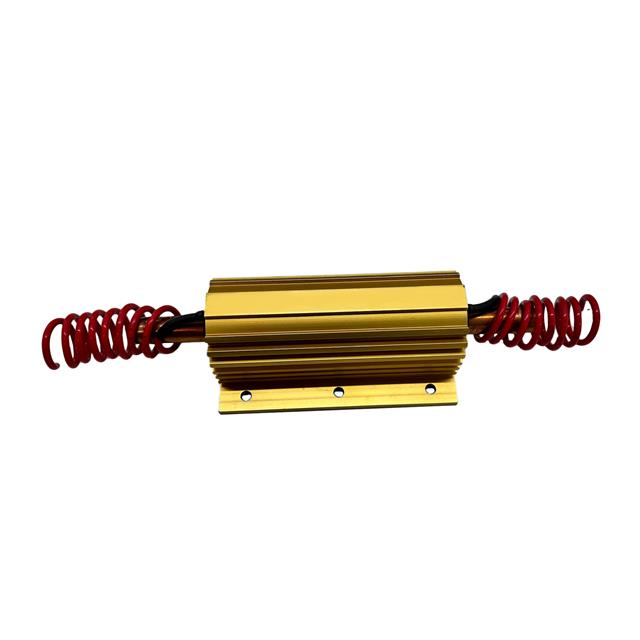

HSW600 680R J
ActiveARCOL
ALUM HOUSE 600W 680 OHMS 5%
Deep-Dive with AI
Search across all available documentation for this part.
HSW600 680R J
ActiveARCOL
ALUM HOUSE 600W 680 OHMS 5%
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSW600 680R J |
|---|---|
| Coating, Housing Type | Aluminum |
| Features | Pulse Withstanding |
| Height - Seated (Max) [Max] [z] | 1.772 in |
| Height - Seated (Max) [Max] [z] | 45 mm |
| Lead Style | Wire Leads |
| Mounting Feature | Flanges |
| Power (Watts) | 600 W |
| Resistance | 680 Ohms |
| Size / Dimension [x] | 4.488 in |
| Size / Dimension [x] | 114 mm |
| Size / Dimension [y] | 2.835 in |
| Size / Dimension [y] | 72 mm |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HSW600 680R J
680 Ohms ±5% 600W Chassis Mount Resistor
Documents
Technical documentation and resources
No documents available
