WF52
ActiveAmp'ed RF Tech
RF TXRX MODULE WIFI SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WF52
ActiveAmp'ed RF Tech
RF TXRX MODULE WIFI SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WF52 |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving [Max] | 65.87 mA |
| Current - Receiving [Min] | 62.07 mA |
| Current - Transmitting [Max] | 279.67 mA |
| Current - Transmitting [Min] | 257.67 mA |
| Data Rate | 65 Mbps |
| Frequency [Max] | 2.495 GHz |
| Frequency [Min] | 2.4 GHz |
| Memory Size [custom] | 512 kB |
| Memory Size [custom] | 128 kB |
| Modulation | QPSK, 64QAM, DSSS, CCK, BPSK, 16QAM, OFDM |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 21-SMD Module |
| Power - Output | 21.25 dBm |
| Protocol | 802.11a/b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -98 dBm |
| Serial Interfaces | UART, GPIO, ADC, SPI, I2C |
| Utilized IC / Part | STM32 |
| Voltage - Supply [Max] | 4.8 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.00 | |
Description
General part information

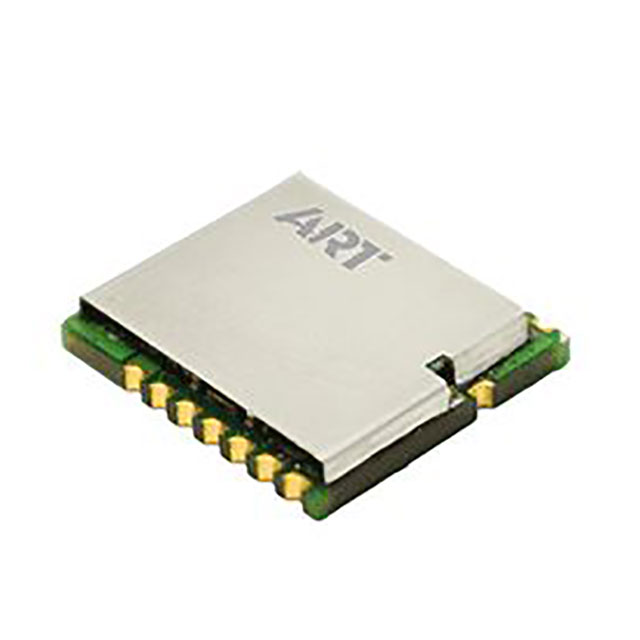

WF52
WiFi 802.11a/b/g/n Transceiver Module 2.4GHz ~ 2.495GHz Antenna Not Included Surface Mount
