1050000
ActiveRittal
AX COMPACT ENCLOSURE, WHD: 500X5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1050000
ActiveRittal
AX COMPACT ENCLOSURE, WHD: 500X5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1050000 |
|---|---|
| Area (L x W) [custom] | 388 in² |
| Area (L x W) [custom] | 2500 cm² |
| Color | Light Gray |
| Container Type | Enclosure |
| Design | Hinged Door |
| Height [z] | 8.268 in |
| Height [z] | 210 mm |
| Material | Metal, Steel |
| Ratings | NEMA 4, IP66, NEMA 3R, NEMA 1, NEMA 12 |
| Size / Dimension [x] | 500 mm |
| Size / Dimension [x] | 19.685 in |
| Size / Dimension [y] | 19.685 in |
| Size / Dimension [y] | 500 mm |
| Thickness | 1.25 mm |
| Thickness | 0.049 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 409.44 | |
| 5 | $ 380.39 | |||
Description
General part information
1050000

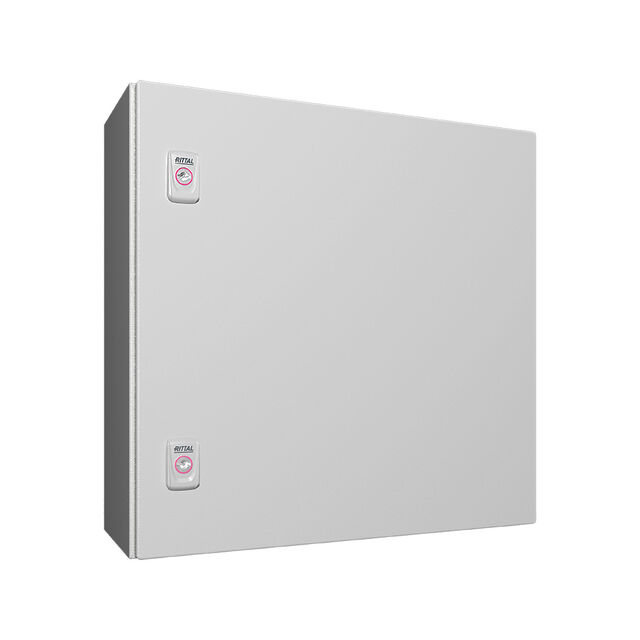

Enclosure Metal, Steel Light Gray Hinged Door 19.685" L x 19.685" W (500.00mm x 500.00mm) X 8.268" (210.00mm)
