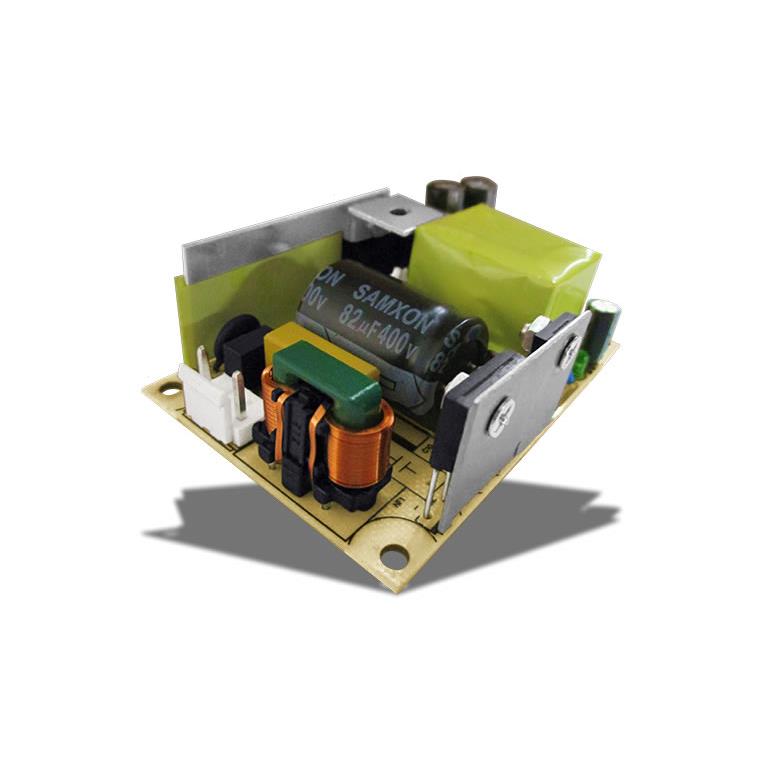

MPO-65S-12E
ActiveMicroPower Direct
AC-DC 85-264VAC 12VOUT 65W OPENF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPO-65S-12E
ActiveMicroPower Direct
AC-DC 85-264VAC 12VOUT 65W OPENF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPO-65S-12E |
|---|---|
| Applications | Industrial |
| Approval Agency | CE, UKCA, UL |
| Efficiency | 85 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 3 " |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 1.18 in |
| Size / Dimension [z] | 30 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.50 | |
| 10 | $ 18.75 | |||
| 25 | $ 18.35 | |||
| 50 | $ 17.95 | |||
| 100 | $ 17.55 | |||
Description
General part information
MPO-65S-12E
Open Frame AC DC Converters 1 Output 12V Input
