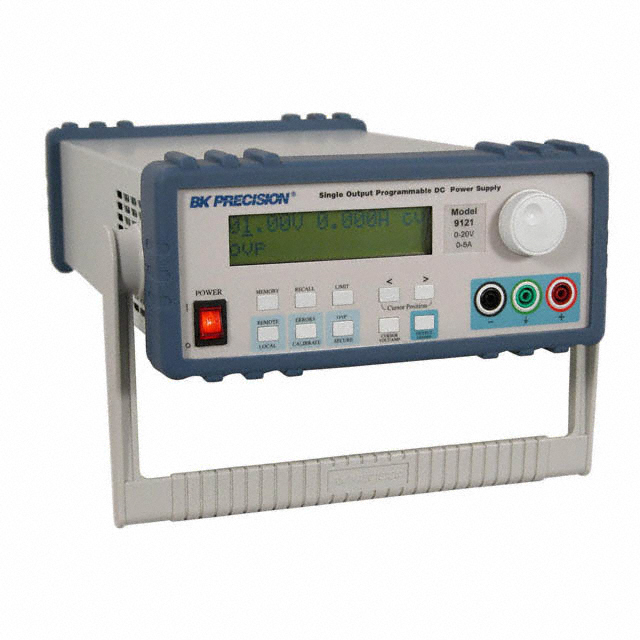

9121
ObsoleteB&K PRECISION
POWER SUPPLY 0-20V 0-5A PROGRAM
Deep-Dive with AI
Search across all available documentation for this part.
9121
ObsoleteB&K PRECISION
POWER SUPPLY 0-20V 0-5A PROGRAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9121 |
|---|---|
| Accuracy - Voltmeter; Ammeter | 0.05% + 5mV |
| Current - Output [Max] | 5 A |
| Current - Output [Min] | 0 A |
| Current Regulation - Line | 250 µA, 0.01 % |
| Current Regulation - Load | 250 µA, 0.01 % |
| Display Type | Digital |
| Features | Programmable |
| Number of Outputs | 1 |
| Power (Watts) | 100 W |
| Ripple | 5 mV |
| Size / Dimension [x] | 381 mm |
| Size / Dimension [x] | 15 in |
| Size / Dimension [y] | 8.27 in |
| Size / Dimension [y] | 210.06 mm |
| Size / Dimension [z] | 80.01 mm |
| Size / Dimension [z] | 3.15 " |
| Type | Bench (AC to DC) |
| Voltage - Output [Max] | 20 V |
| Voltage - Output [Min] | 0 VDC |
| Voltage - Supply | 220 VAC, 110 VAC/DC |
| Voltage Regulation - Line | 0.01 %, 3 mV |
| Weight | 13 lbs |
| Weight | 5.9 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.19 | |
| 1 | $ 144.00 | |||
| 25 | $ 1.12 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.03 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.66 | |||
Description
General part information
9121
0 ~ 20VDC Output Bench (AC to DC) Power Supply Digital 0 ~ 5A Output 100W Features Programmable
