1395G5
ActiveAnderson Power Products, Inc.

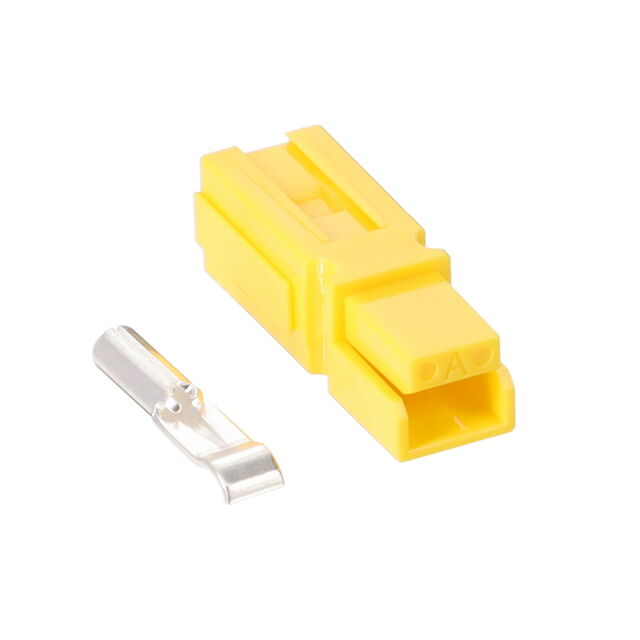

RECTANGULAR POWER CONNECTOR, 1 CONTACT(S), HERMAPHRODITIC, CRIMP AND SOLDER TERMINAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1395G5 |
|---|---|
| Color | Yellow |
| Connector Style | Single Pole |
| Connector Type | Non-Gendered |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 15 A |
| Fastening Type | Spring Retention |
| Features | Stackable |
| Material - Insulation | Polycarbonate |
| Material - Insulation | PC |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Termination | Crimp |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.57 | |
| 10 | $ 10.04 | |||
Description
General part information
1395G5
1 Position Non-Gendered Connector Crimp Free Hanging (In-Line)
