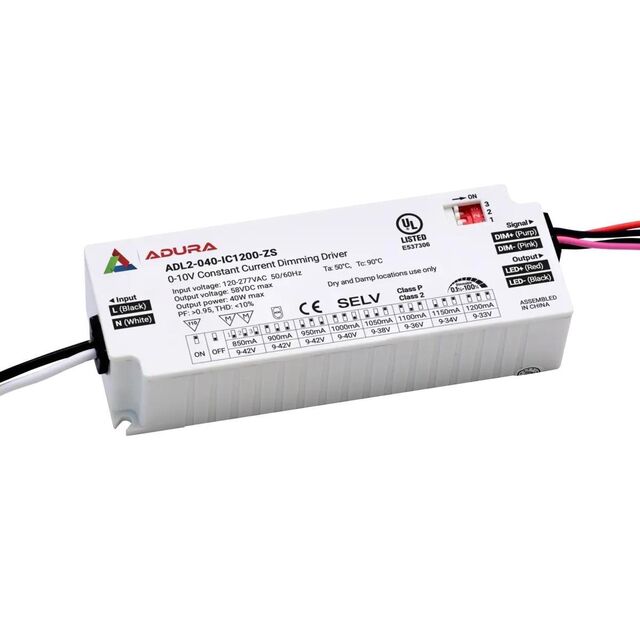

ADL2-040-IC1200-ZS
ActiveADURA LED Soutions
120-277 VAC 40W/850-1200MA (DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADL2-040-IC1200-ZS |
|---|---|
| Approval Agency | UL, CE |
| Current - Output (Max) [Max] | 1.2 A |
| Dimming | Resistive Dimming, Analog, PWM |
| Efficiency | 87 % |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 40 W |
| Ratings | IP20 |
| Size / Dimension [x] | 4.76 " |
| Size / Dimension [x] | 120.9 mm |
| Size / Dimension [y] | 1.73 " |
| Size / Dimension [y] | 43.9 mm |
| Size / Dimension [z] | 1.04 in |
| Size / Dimension [z] | 26.4 mm |
| Standard Number | UL 8750 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output [Max] | 42 V |
| Voltage - Output [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.99 | |
| 10 | $ 15.25 | |||
| 100 | $ 13.40 | |||
| 500 | $ 12.56 | |||
| 1000 | $ 12.08 | |||
| 5000 | $ 11.55 | |||
Description
General part information
ADL2-040-IC1200-ZS
1.2A 9 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
