134-1001-441
ActiveCinch Connectivity Solutions Johnson

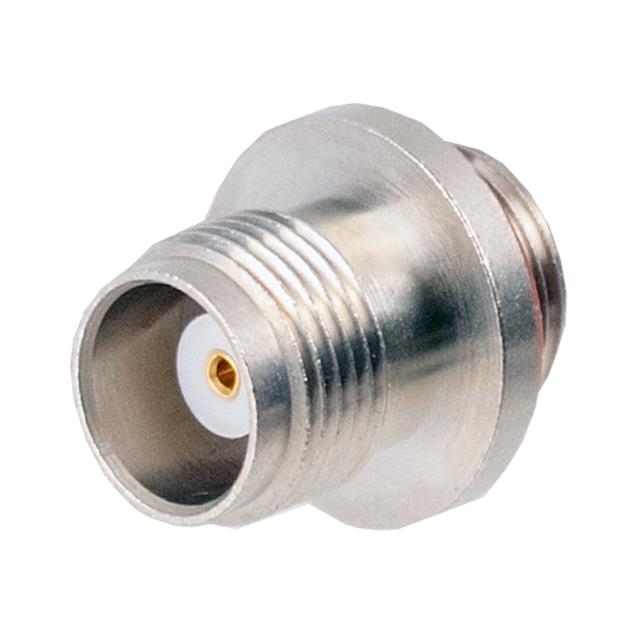

TNC JACK TO MCX BULKHEAD ADAPTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 134-1001-441 |
|---|---|
| Adapter Series | TNC to MCX |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | TNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, MCX Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 6000 MHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 31.57 | |
| 10 | $ 27.64 | |||
| 25 | $ 26.45 | |||
| 50 | $ 25.59 | |||
| 100 | $ 24.74 | |||
| 250 | $ 23.38 | |||
Description
General part information
134-1001-441
Adapter Coaxial Connector TNC Jack, Female Socket To MCX Jack, Female Socket 50 Ohms
