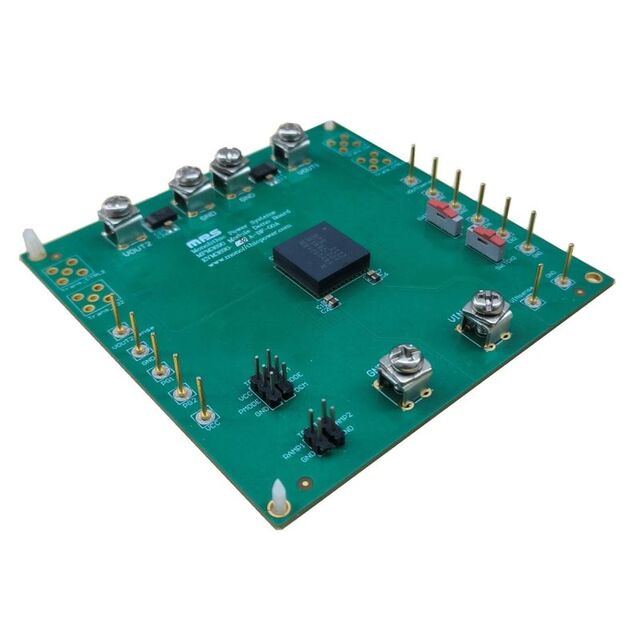

EVM3690-50A-BF-00A
ActiveMONOLITHIC POWER SYSTEMS (MPS)
MPM3690-50A EVALUATION BOARD16V,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EVM3690-50A-BF-00A
ActiveMONOLITHIC POWER SYSTEMS (MPS)
MPM3690-50A EVALUATION BOARD16V,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EVM3690-50A-BF-00A |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 25 A |
| Frequency - Switching | 500 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MPM3690-50A |
| Voltage - Input [Max] | 16 V |
| Voltage - Input [Min] | 3.2 V |
| Voltage - Output | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.00 | |
Description
General part information
EVM3690-50A-BF-00A
MPM3690-50A - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
