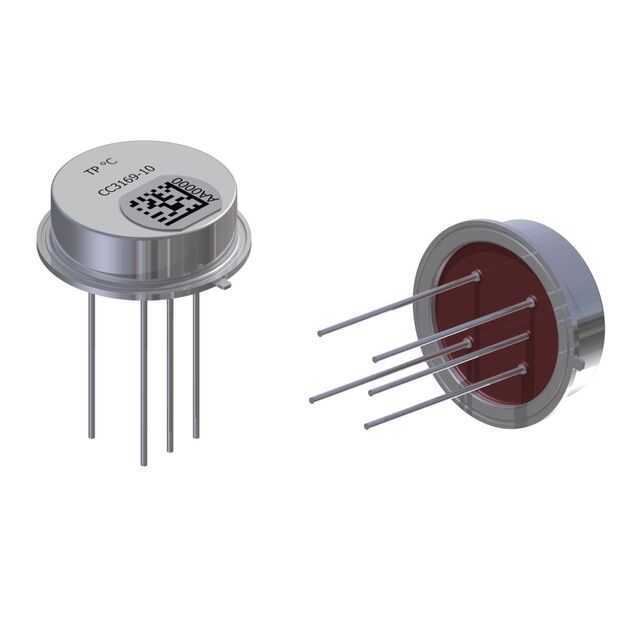

CC3169-10
ActiveQuantic Croven
10 MHZ, SC CUT, 3RD OT, HC-37/U
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CC3169-10
ActiveQuantic Croven
10 MHZ, SC CUT, 3RD OT, HC-37/U
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC3169-10 |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 10 MHz |
| Frequency Tolerance | 1.5 ppm |
| Height - Seated (Max) [Max] | 0.16 in |
| Height - Seated (Max) [Max] | 4.06 mm |
| Load Capacitance | 22 pF |
| Mounting Type | Through Hole |
| Operating Mode | 3rd Overtone |
| Package / Case | TO-8, HC-37/U |
| Size / Dimension [diameter] | 15.75 mm |
| Size / Dimension [diameter] | 0.62 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 78.50 | |
| 30 | $ 65.40 | |||
| 50 | $ 52.80 | |||
| 100 | $ 43.60 | |||
| 200 | $ 41.60 | |||
| 250 | $ 41.00 | |||
Description
General part information
CC3169-10
10 MHz ±1.5ppm Crystal 22pF 100 Ohms HC-37/U, TO-8
