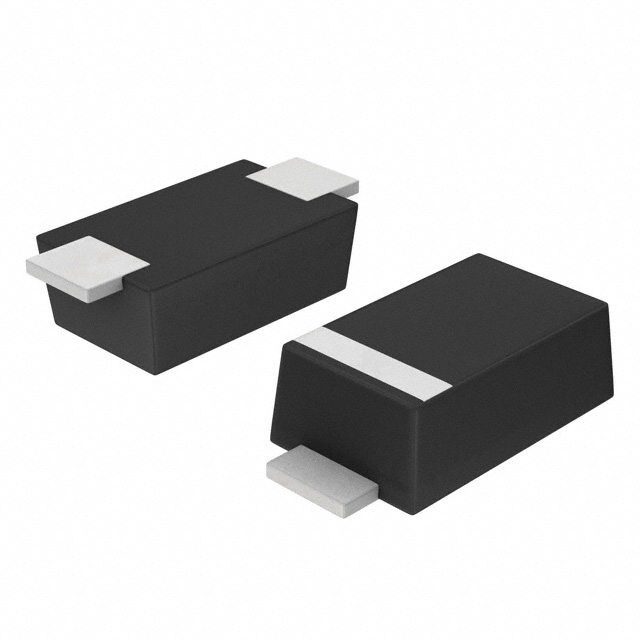

ATV02W480-HF
ActiveComchip Technology
DIODE TVS SINGLE UNI-DIR 48V 200W AUTOMOTIVE 2-PIN SOD-123FL T/R
Deep-Dive with AI
Search across all available documentation for this part.
ATV02W480-HF
ActiveComchip Technology
DIODE TVS SINGLE UNI-DIR 48V 200W AUTOMOTIVE 2-PIN SOD-123FL T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATV02W480-HF |
|---|---|
| Current - Peak Pulse (10/1000µs) | 2.58 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-123F |
| Power - Peak Pulse | 200 W |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | SOD-123F |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 53.3 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 77.4 V |
| Voltage - Reverse Standoff (Typ) | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.10 | |
| 6000 | $ 0.10 | |||
| 9000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 75000 | $ 0.08 | |||
Description
General part information
ATV02W480-HF
77.4V Clamp 2.58A Ipp Tvs Diode Surface Mount SOD-123F
Documents
Technical documentation and resources
No documents available
