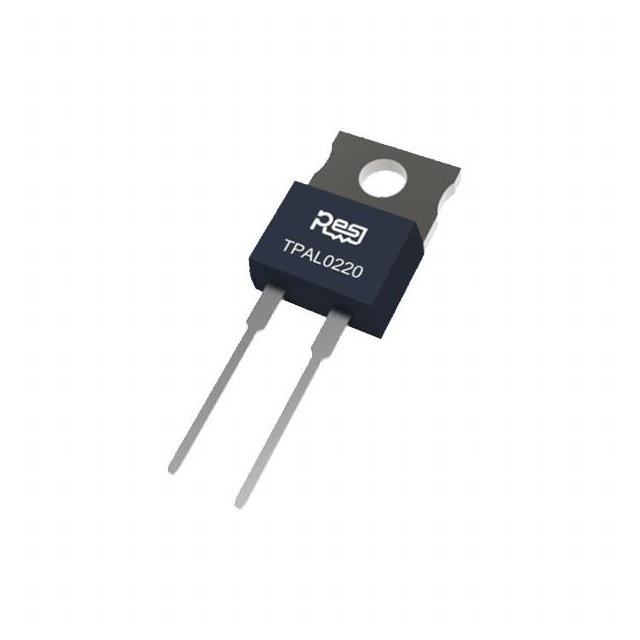

TPAL0220F15R0K9 - TPAL0220F15R0K9

TPAL0220F15R0K9

Active
RESI

NON-INDUCTIVE POWER RESISTORS 15Ω 35W ±100PPM/℃ ±1% TO-220 THROUGH HOLE RESISTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
TPAL0220F15R0K9 - TPAL0220F15R0K9

TPAL0220F15R0K9

Active
RESI

NON-INDUCTIVE POWER RESISTORS 15Ω 35W ±100PPM/℃ ±1% TO-220 THROUGH HOLE RESISTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationTPAL0220F15R0K9
CompositionThick Film
FeaturesNon-Inductive
Height - Seated (Max) [Max] [z]19.6 mm
Height - Seated (Max) [Max] [z]0.772 in
Number of Terminations2
Operating Temperature [Max]150 °C
Operating Temperature [Min]-55 °C
Package / CaseTO-220-2
Power (Watts)35 W
Resistance15 Ohms
Supplier Device PackageTO-220
Temperature Coefficient100 ppm/°C
Tolerance1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 4.76
10$ 3.05
50$ 2.40
100$ 2.20
500$ 1.87
1000$ 1.77
5000$ 1.62
LCSCPiece 1$ 2.40
10$ 2.03
30$ 1.80
100$ 1.56
500$ 1.46
1000$ 1.41

Description

General part information

TPAL0220F15R0K9

15 Ohms ±1% 35W Through Hole Resistor TO-220-2 Non-Inductive Thick Film
