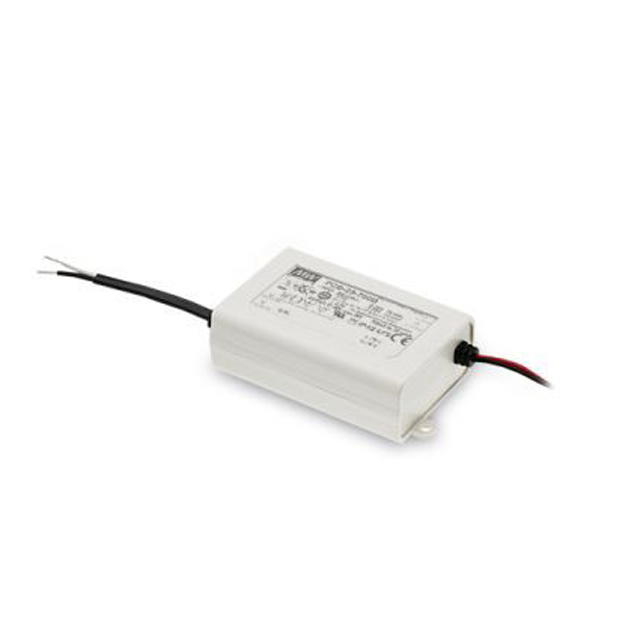

PCD-25-350A
ActiveLED Lighting Inc
CONSTANT CURRENT POWER SUPPLY 35
Deep-Dive with AI
Search across all available documentation for this part.
PCD-25-350A
ActiveLED Lighting Inc
CONSTANT CURRENT POWER SUPPLY 35
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PCD-25-350A |
|---|---|
| Approval Agency | cURus, FCC |
| Current - Output (Max) [Max] | 350 mA |
| Dimming | TRIAC |
| Features | OTP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 20.3 W |
| Ratings | IP42 |
| Size / Dimension [x] | 3.3 " |
| Size / Dimension [x] | 83.8 mm |
| Size / Dimension [y] | 56.9 mm |
| Size / Dimension [y] | 2.24 " |
| Size / Dimension [z] | 1.16 " |
| Size / Dimension [z] | 29.5 mm |
| Standard Number | 60950-1 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Min) [Min] | 115 VAC |
| Voltage - Output [Max] | 58 V |
| Voltage - Output [Min] | 40 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PCD-25-350A
350mA 40 ~ 58V Constant Current LED Driver AC DC Converter Topology 1 Output
