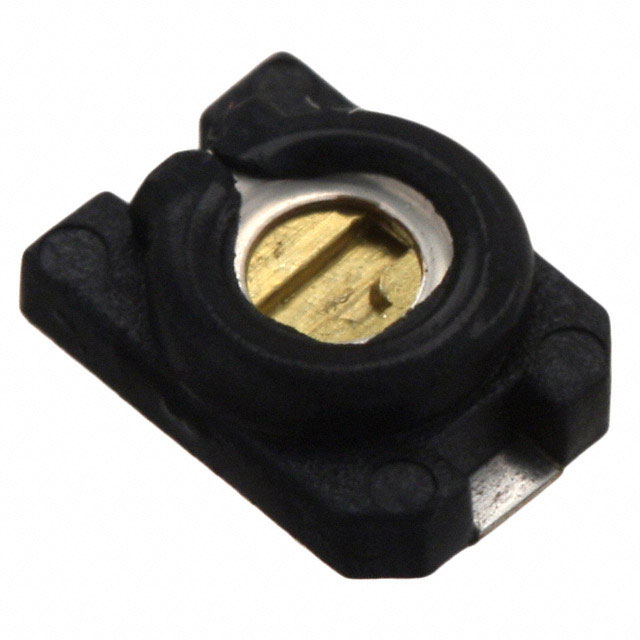

SGC3S030
ActiveEW Electronics
CAP TRIMMER 1.8-4.5PF 100V SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SGC3S030
ActiveEW Electronics
CAP TRIMMER 1.8-4.5PF 100V SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SGC3S030 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range [Max] | 3 pF |
| Capacitance Range [Min] | 1.5 pF |
| Dielectric Material | Ceramic |
| Features | Low Profile |
| Height - Seated (Max) | 1.54 mm |
| Height - Seated (Max) [Max] [z] | 0.061 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Q @ Freq | 1 MHz, 300 |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.25 | |
| 10 | $ 1.05 | |||
| 25 | $ 1.01 | |||
| 50 | $ 0.99 | |||
| 100 | $ 0.94 | |||
| 250 | $ 0.86 | |||
| 500 | $ 0.77 | |||
| Digi-Reel® | 1 | $ 1.25 | ||
| 10 | $ 1.05 | |||
| 25 | $ 1.01 | |||
| 50 | $ 0.99 | |||
| 100 | $ 0.94 | |||
| 250 | $ 0.86 | |||
| 500 | $ 0.77 | |||
| Tape & Reel (TR) | 1000 | $ 0.69 | ||
| 2000 | $ 0.64 | |||
| 3000 | $ 0.62 | |||
| 5000 | $ 0.60 | |||
| 10000 | $ 0.57 | |||
Description
General part information
SGC3S030
1.5 ~ 3pF Trimmer Capacitor 100 V Top Surface Mount
