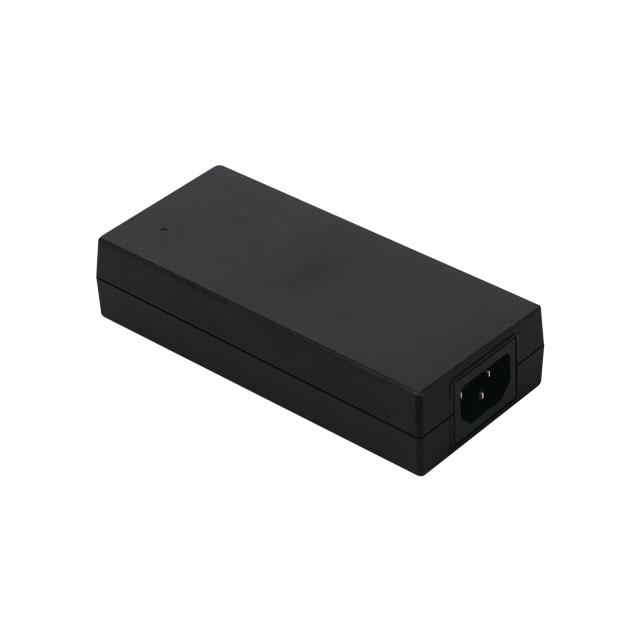

MEA-090A24C V-A
ActiveDelta Electronics
AC/DC DESKTOP ADAPTER 24V 90W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MEA-090A24C V-A
ActiveDelta Electronics
AC/DC DESKTOP ADAPTER 24V 90W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MEA-090A24C V-A |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, UKCA, PSE, CE, CCC |
| Cord Length | 47 " |
| Cord Length | 1.2 m |
| Current - Output (Max) [Max] | 3.75 A |
| Efficiency | Level VI |
| Features | IP22 |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Output Connector | Barrel Plug R/A |
| Output Connector [diameter] | 2.5 mm, 5.5 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 90 W |
| Region Utilized | International |
| Size / Dimension [x] | 62 mm |
| Size / Dimension [x] | 2.44 in |
| Size / Dimension [y] | 5.31 in |
| Size / Dimension [y] | 135 mm |
| Size / Dimension [z] | 1.26 in |
| Size / Dimension [z] | 32 mm |
| Standard Number | 60950-1, 60601-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 48.04 | |
| 5 | $ 47.29 | |||
| 20 | $ 45.04 | |||
| 40 | $ 42.04 | |||
| 60 | $ 41.29 | |||
| 100 | $ 39.94 | |||
Description
General part information
MEA-090A24C V-A
24V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Documents
Technical documentation and resources
