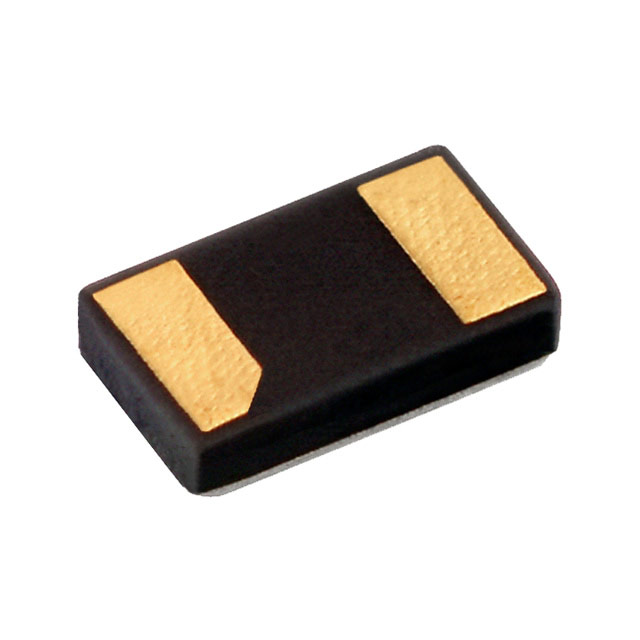

CM8V-T1A-100.000KHZ-9PF-100PPM-TA-QC
ActiveMicro Crystal AG
CRYSTAL 100.0000KHZ 9PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CM8V-T1A-100.000KHZ-9PF-100PPM-TA-QC |
|---|---|
| ESR (Equivalent Series Resistance) | 70 kOhms |
| Frequency | 100 kHz |
| Frequency Tolerance | 100 ppm |
| Height - Seated (Max) [Max] [z] | 0.6 mm |
| Height - Seated (Max) [Max] [z] | 0.024 in |
| Load Capacitance | 9 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
| Type | kHz Crystal (Tuning Fork) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.69 | |
Description
General part information
CM8V-T1A-100.000KHZ-9PF-100PPM-TA-QC
100 kHz ±100ppm Crystal 9pF 70 kOhms 2-SMD, No Lead
