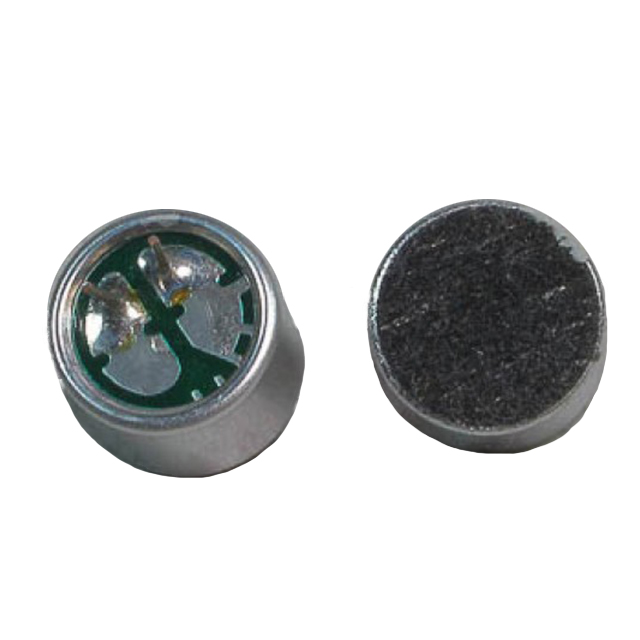

MEO-94PN-01-643
ActiveInternational Components Corp.
MIC COND ANLG OMNI -64DB 0.382"D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MEO-94PN-01-643
ActiveInternational Components Corp.
MIC COND ANLG OMNI -64DB 0.382"D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MEO-94PN-01-643 |
|---|---|
| Current - Supply | 300 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 16 kHz |
| Frequency Range [Min] | 20 Hz |
| Height (Max) [Max] | 4.5 mm |
| Height (Max) [Max] | 0.177 in |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 40 dB |
| Sensitivity | -64 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 9.7 mm |
| Size / Dimension [diameter] | 0.382 in |
| Termination | PC Pins |
| Type | Electret Condenser |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 100 | $ 0.57 | |
| 500 | $ 0.55 | |||
| 1000 | $ 0.49 | |||
Description
General part information
MEO-94PN-01-643
20 Hz ~ 16 kHz Analog Microphone Electret Condenser Omnidirectional (-64dB ±3dB) PC Pins
